Elo

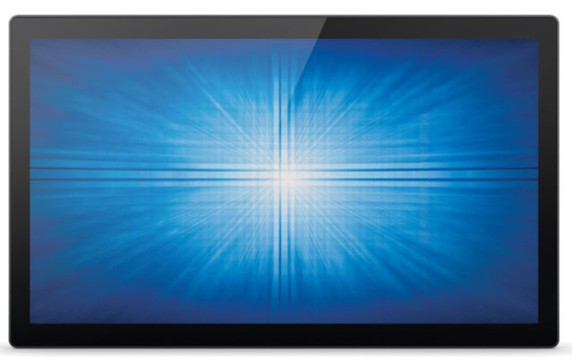

Elo E493591 Digitale Beschilderung

SKU:

E493591

Fitted with TouchPro Projected Capacitive touch technology supporting 10 simultaneous touchpoints, the Elo E493591 is a 27-inch open-frame TFT LCD monitor built for kiosk, gaming, industrial automation, and self-service integration. It delivers a Full HD 1920 x 1080 resolution at a 60 Hz refresh rate with 300 Nit brightness and a 3,000:1 native contrast ratio, backed by 16.7 million colors and a 12 ms response time. Horizontal and vertical viewing angles each reach 178 degrees, and the panel supports landscape, portrait, and face-up mounting via a flush mount design with 200 x 100 VESA compatibility. Video connectivity spans HDMI, DisplayPort, and VGA, with USB carrying the touch interface, and operating power draw sits at 27 W. The chassis measures 25.4 in wide by 15.3 in tall by 1.6 in deep and weighs 16.09 lb. RoHS, China RoHS, and WEEE compliance are included, and the unit is covered by a 3-year limited warranty.
Die Preise konnten nicht aktualisiert werden.
Beschreibung
ico-plus ico-minus

The Elo 2440L 24-inch Open-Frame Touchmonitor is designed to elevate user interaction in settings like kiosks, gaming machines, and self-service stations. Renowned for its edge-to-edge glass design, this monitor offers **Superb Image Quality** and **Touch Technology** reliability. With options for single-touch and multi-touch capabilities, it integrates seamlessly into any environment, featuring a compact form factor and multiple mounting options. Invest in a touch solution that combines style, functionality, and long-term durability, backed by a **3-year standard warranty**.


Key Features:

  • True-flat design for enhanced aesthetics and usability
  • Pure-glass touchscreen ensuring optimal image quality
  • Edge-to-edge zero-bezel design for modern appeal
  • Multiple mounting options for versatile installations
  • Variety of touch technologies including IntelliTouch and projected capacitive

Specifications:

  • Model: 2440L
  • Color: Black
  • Active Display Area: 521.3 x 293.2 mm
  • Diagonal Size: 23.6 inches
  • Resolution: 1920 x 1080 Full HD
  • Brightness: 300 nits (LCD)
  • Response Time: 5 ms
  • Viewing Angle: Horizontal 170°, Vertical 160°
  • Weight: 5.7 kg (unpackaged)
  • Power Consumption: 30W (typical ON)
  • Operating Temperature: 0 °C to 40 °C
  • Warranty: 3 years standard

Hauptmerkmale

  • Berührung: Ja

  • Verbindung: USB

Technische Spezifikationen
ico-plus ico-minus
Technical Information
Screen Size Class 27"
Viewable Screen Size 27"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 12 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type Flush Mount
Backlight Technology LED
Features
  • On-screen Display (OSD)
  • Landscape/Portrait Viewable
  • Wide Viewing Angle
Horizontal Frequency 30 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Video
Maximum Resolution 1920 x 1080
Standard Refresh Rate 60 Hz
Color Supported 16.7 Million Colors
Native Contrast Ratio 3,000:1
Brightness 300 Nit
Touchscreen Information
Touchscreen Type TouchPro Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
DisplayPort Yes
Power Description
Operating Power Consumption 27 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 200 x 100
Color Family Black
Product Color Black
Height 15.3"
Width 25.4"
Depth 1.6"
Weight (Approximate) 16.09 lb
Miscellaneous
Package Contents
  • 2794L Open Frame Touch Screen
  • HDMI Cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • Quick Install Guide
  • EEI Label
  • Japan Class-B TM Info Sheet
  • For Zero-Bazel Models: Flush Mount Brackets with Screws
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Dokumente
ico-plus ico-minus
Produktdokument 2794l-2021.pdf E493591 Produktdokument 4363l.pdf MOD-ELO-OPEN-FRAME-TOUCH-MONITORS
Häufig gestellte Fragen
ico-plus ico-minus
Welche Anschlussmöglichkeiten unterstützen die Elo Open-Frame Touch-Monitore?
Die Elo Open-Frame Touch-Monitore unterstützen Ethernet-, serielle und USB-Verbindungen.
Welche Touch-Technologien sind bei den Elo Open-Frame Touch-Monitoren verfügbar?
Die Monitore sind mit IntelliTouch und projizierten kapazitiven Touch-Technologien erhältlich, die sowohl Einzel- als auch Multi-Touch-Konfigurationen unterstützen.
Welche Garantie bieten die Elo Open-Frame Touch-Monitore?
Elo unterstützt diese Open-Frame-Touch-Monitore mit einer 3-jährigen Standardgarantie.
Für welche Arten von Installationen oder Gehäusen sind die Elo Open-Frame Touch Monitore ausgelegt?
Das offene Design mit mehreren Montagemöglichkeiten macht diese Monitore geeignet für die Integration in Kioske, Spielautomaten und Selbstbedienungsstationen.
Unterstützen die Elo Open-Frame Touch-Monitore große Displaykonfigurationen?
Ja, die Produktlinie umfasst sowohl Standard- als auch große Displayoptionen.
