Elo

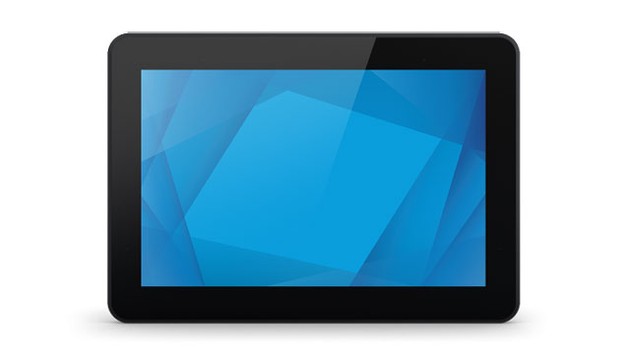

Elo E354792 Digitale Beschilderung

SKU:

E354792

Rated IP66 and IK09, the Elo E354792 is a 10.10-inch open-frame outdoor touchscreen built for continuous 24-hour, 7-day operation across operating temperatures from -4°F (-20°C) to 140°F (60°C) and humidity levels from 10% to 90%. Its LED-backlit TFT LCD panel delivers 1000 Nit brightness at a native contrast ratio of 800:1 and 1280 x 800 resolution with a 25 ms response time, while an ambient light sensor automatically adjusts brightness to extend the rated 5.7-year LED life. Projected capacitive multi-touch supports 5 simultaneous touchpoints, and the display mounts in landscape or portrait orientation via 200 x 100 VESA, flush mount, or bracket mount. Connectivity spans HDMI, DisplayPort, USB, and Ethernet, with input voltage acceptance at either 12 V DC or 24 V DC. The unit weighs 4.85 lb and complies with RoHS, China RoHS, and WEEE directives.
Die Preise konnten nicht aktualisiert werden.
Beschreibung
ico-plus ico-minus

The Elo 2440L 24-inch Open-Frame Touchmonitor is designed to elevate user interaction in settings like kiosks, gaming machines, and self-service stations. Renowned for its edge-to-edge glass design, this monitor offers **Superb Image Quality** and **Touch Technology** reliability. With options for single-touch and multi-touch capabilities, it integrates seamlessly into any environment, featuring a compact form factor and multiple mounting options. Invest in a touch solution that combines style, functionality, and long-term durability, backed by a **3-year standard warranty**.


Key Features:

  • True-flat design for enhanced aesthetics and usability
  • Pure-glass touchscreen ensuring optimal image quality
  • Edge-to-edge zero-bezel design for modern appeal
  • Multiple mounting options for versatile installations
  • Variety of touch technologies including IntelliTouch and projected capacitive

Specifications:

  • Model: 2440L
  • Color: Black
  • Active Display Area: 521.3 x 293.2 mm
  • Diagonal Size: 23.6 inches
  • Resolution: 1920 x 1080 Full HD
  • Brightness: 300 nits (LCD)
  • Response Time: 5 ms
  • Viewing Angle: Horizontal 170°, Vertical 160°
  • Weight: 5.7 kg (unpackaged)
  • Power Consumption: 30W (typical ON)
  • Operating Temperature: 0 °C to 40 °C
  • Warranty: 3 years standard

Hauptmerkmale

  • Berührung: Ja

  • Verbindung: USB, Ethernet

Technische Spezifikationen
ico-plus ico-minus
Technical Information
Ingress Protection (IP) Rating IP66
Impact Protection (IK) Rating IK09
Panel Technology Thin Film Transistor (TFT)
Operation Hours 24 Hours/7 Days
Display & Graphics
Viewable Screen Size 10.10"
Display Screen Type LCD
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 5
Display Resolution 1280 x 800
Response Time 25 ms
Aspect Ratio 16:9
Backlight Technology LED
Orientation Landscape/Portrait
Maximum LED Life 5.7 Year
Video
Native Contrast Ratio 800:1
Brightness 1000 Nit
Network & Communication
Ethernet Yes
Interfaces/Ports
USB Yes
HDMI Yes
DisplayPort Yes
Power Description
Input Voltage
  • 12 V DC
  • 24 V DC
Environmental Conditions
Minimum Operating Temperature -4°F (-20°C)
Maximum Operating Temperature 140°F (60°C)
Minimum Storage Temperature -22°F (-30°C)
Maximum Storage Temperature 176°F (80°C)
Minimum Operating Humidity 10%
Maximum Operating Humidity 90%
Minimum Storage Humidity 10%
Maximum Storage Humidity 95%
Physical Characteristics
Color Family Black
Product Color Black
VESA Mount Standard 200 x 100
Mount Type
  • Flush Mount
  • Bracket Mount
Height 6.9"
Width 10"
Depth 1.6"
Weight (Approximate) 4.85 lb
Miscellaneous
Application/Usage
  • Outdoor
  • Kiosk
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Dokumente
ico-plus ico-minus
Produktdokument 1099l.pdf E354792 Produktdokument 4363l.pdf MOD-ELO-OPEN-FRAME-TOUCH-MONITORS
Häufig gestellte Fragen
ico-plus ico-minus
Welche Anschlussmöglichkeiten unterstützen die Elo Open-Frame Touch-Monitore?
Die Elo Open-Frame Touch-Monitore unterstützen Ethernet-, serielle und USB-Verbindungen.
Welche Touch-Technologien sind bei den Elo Open-Frame Touch-Monitoren verfügbar?
Die Monitore sind mit IntelliTouch und projizierten kapazitiven Touch-Technologien erhältlich, die sowohl Einzel- als auch Multi-Touch-Konfigurationen unterstützen.
Welche Garantie bieten die Elo Open-Frame Touch-Monitore?
Elo unterstützt diese Open-Frame-Touch-Monitore mit einer 3-jährigen Standardgarantie.
Für welche Arten von Installationen oder Gehäusen sind die Elo Open-Frame Touch Monitore ausgelegt?
Das offene Design mit mehreren Montagemöglichkeiten macht diese Monitore geeignet für die Integration in Kioske, Spielautomaten und Selbstbedienungsstationen.
Unterstützen die Elo Open-Frame Touch-Monitore große Displaykonfigurationen?
Ja, die Produktlinie umfasst sowohl Standard- als auch große Displayoptionen.
