Elo

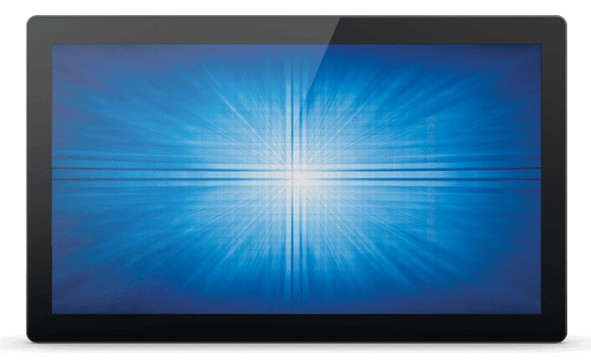

Elo E146083 Digitale Beschilderung

SKU:

E146083

Rated at 400 Nit brightness across a 21.5-inch Full HD TFT panel, the Elo E146083 open-frame LCD touchscreen delivers 1920 x 1080 resolution at a 1,000:1 native contrast ratio with 16.7 million colors and a 14 ms response time. Its TouchPro Projected Capacitive touch surface supports 10 simultaneous touchpoints, with horizontal and vertical viewing angles of 178 degrees making it suitable for landscape, portrait, and face-up mounting orientations. Video connectivity covers HDMI, DisplayPort, VGA, and USB, and the LED backlight draws 25 W during operation. The flush-mount chassis measures 20.3 inches wide by 12.2 inches deep by 1.9 inches and weighs 11.93 lb, with VESA 100 x 100 compatibility for flexible integration into kiosks, tables, and cabinets. RoHS, China RoHS, and WEEE compliance are included, and the unit ships with a 3-year limited warranty.
Die Preise konnten nicht aktualisiert werden.
Beschreibung
ico-plus ico-minus

The Elo 2440L 24-inch Open-Frame Touchmonitor is designed to elevate user interaction in settings like kiosks, gaming machines, and self-service stations. Renowned for its edge-to-edge glass design, this monitor offers **Superb Image Quality** and **Touch Technology** reliability. With options for single-touch and multi-touch capabilities, it integrates seamlessly into any environment, featuring a compact form factor and multiple mounting options. Invest in a touch solution that combines style, functionality, and long-term durability, backed by a **3-year standard warranty**.


Key Features:

  • True-flat design for enhanced aesthetics and usability
  • Pure-glass touchscreen ensuring optimal image quality
  • Edge-to-edge zero-bezel design for modern appeal
  • Multiple mounting options for versatile installations
  • Variety of touch technologies including IntelliTouch and projected capacitive

Specifications:

  • Model: 2440L
  • Color: Black
  • Active Display Area: 521.3 x 293.2 mm
  • Diagonal Size: 23.6 inches
  • Resolution: 1920 x 1080 Full HD
  • Brightness: 300 nits (LCD)
  • Response Time: 5 ms
  • Viewing Angle: Horizontal 170°, Vertical 160°
  • Weight: 5.7 kg (unpackaged)
  • Power Consumption: 30W (typical ON)
  • Operating Temperature: 0 °C to 40 °C
  • Warranty: 3 years standard

Hauptmerkmale

  • Berührung: Ja

  • Verbindung: USB

Technische Spezifikationen
ico-plus ico-minus
Technical Information
Screen Size Class 22"
Viewable Screen Size 21.5"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 14 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type Flush Mount
Backlight Technology LED
Features
  • On-screen Display (OSD)
  • Wide Viewing Angle
  • Landscape/Portrait Viewable
Horizontal Frequency 30 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Video
Maximum Resolution 1920 x 1080
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 400 Nit
Touchscreen Information
Touchscreen Type TouchPro Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
DisplayPort Yes
Power Description
Operating Power Consumption 25 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Color Family Black
Product Color Black
Height 12.2"
Width 20.3"
Depth 1.9"
Weight (Approximate) 11.93 lb
Miscellaneous
Package Contents
  • 2295L Open Frame Touch Screen
  • HDMI Cable
  • Touch USB Cable
  • VGA Cable
  • Remote OSD
  • Flush Mount Brackets with Screws
  • Quick Install Guide
  • EEi Label
  • Japan Class-B TM Info Sheet
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Dokumente
ico-plus ico-minus
Produktdokument 2295l.pdf E146083  (PDF)
Häufig gestellte Fragen
ico-plus ico-minus
Welche Anschlussmöglichkeiten unterstützen die Elo Open-Frame Touch-Monitore?
Die Elo Open-Frame Touch-Monitore unterstützen Ethernet-, serielle und USB-Verbindungen.
Welche Touch-Technologien sind bei den Elo Open-Frame Touch-Monitoren verfügbar?
Die Monitore sind mit IntelliTouch und projizierten kapazitiven Touch-Technologien erhältlich, die sowohl Einzel- als auch Multi-Touch-Konfigurationen unterstützen.
Welche Garantie bieten die Elo Open-Frame Touch-Monitore?
Elo unterstützt diese Open-Frame-Touch-Monitore mit einer 3-jährigen Standardgarantie.
Für welche Arten von Installationen oder Gehäusen sind die Elo Open-Frame Touch Monitore ausgelegt?
Das offene Design mit mehreren Montagemöglichkeiten macht diese Monitore geeignet für die Integration in Kioske, Spielautomaten und Selbstbedienungsstationen.
Unterstützen die Elo Open-Frame Touch-Monitore große Displaykonfigurationen?
Ja, die Produktlinie umfasst sowohl Standard- als auch große Displayoptionen.
