Bixolon

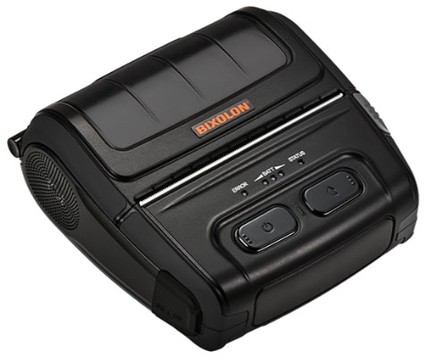

Bixolon SPP-L410WK5 Etikettendrucker

SKU:

SPP-L410WK5

label printer, mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 112 mm, print width (max.): 104 mm, roll diameter (max.): 56 mm, speed (max.): 102 mm/s, USB, RS232, Wi-Fi (802.11a/b/g/n), Black Mark Sensor, Gap Sensor, emulation: ZPLII, SLCS, CPCL, RAM: 128 MB, Flash: 256 MB, incl.: power supply unit, power cable, belt clip, battery, 2850mAh
Beschreibung
ico-plus ico-minus

The Bixolon SPP-L410 Mobile Label Printer is your ideal printing solution for various industries including ticketing, healthcare, logistics, and retail. Compact yet rugged, this printer is designed for on-the-go professionals, boasting a sleek and lightweight body that is easily portable. With fast printing speeds of up to 4 inches per second and compatibility with multiple devices including iOS and Android, it ensures productivity without compromise. Built to withstand challenging environments, the SPP-L410 features water and dust resistance (IP54) along with a robust drop rate of 1.8m, making it perfect for any workspace.


Key features:
  • Fast Printing Speed: Up to 4 ips (102 mm/sec)
  • Compatibility: iOS, Android, and Windows®
  • Connectivity Options: Bluetooth, WLAN, USB, and Serial support
  • Rugged Design: IP54 rated with a 1.8m drop rate
  • Lightweight: Weighs only 530g (1.17 lbs)

Specifications:
  • Print Method: Direct Thermal
  • Print Speed: Up to 4 ips (Label), Up to 3 ips (Linerless)
  • Print Resolution: 203 dpi
  • Print Width: Up to 104 mm
  • Memory: 128 MB SDRAM, 256 MB Flash (optional)
  • Dimensions: 143.0 x 138 x 66 mm
  • Weight: 530 g (including battery)
  • Battery: 7.3 V Li-ion, 2600 mAh, rechargeable
  • Operating Temperature: -15~50°C
  • Humidity: 10~80% RH

Hauptmerkmale

  • Ausrüstungsformat: Mobile

  • Robust: Industrial

  • Verbindung: Serial, USB, Bluetooth

  • Drucktechnologie: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.02 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.09"
Barcode Symbology Supported
  • TLC 39
  • QR Code
  • Codabar
  • Maxi Code
  • UPC-E
  • UPC-A
  • AZTEC
  • POSTNET
  • Code 11
  • Code 93
  • Code 39
  • Industrial 2 of 5
  • IMB
  • UPC/EAN
  • GS1 DataBar (RSS-14)
  • LOGMARS
  • MSI
  • Plessey
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • Standard 2 of 5
  • Micro PDF-417
Application/Usage
  • Mobile
  • Ticketing
  • Healthcare
  • Retail
  • Logistic
Features
  • Compact
  • Rugged
  • Ergonomic
  • Lightweight
  • Water Resistant
  • Dust Resistant
  • Belt Clip
Ingress Protection (IP) Rating IP54
Connectivity Technology Wireless
Fonts Included
  • Fonts (10 SLCS, 16 BPL-Z, 7 BPL-C)
  • Scalable Fonts (1 SLCS, 1 BPL-Z)
  • 23 Code page
  • Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Print Technology Direct Thermal
Memory
Standard Memory 128 MB
Flash Memory 256 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
USB Standard USB 2.0
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Screen Size 4"
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Linered Label
Media Sensor
  • Paper End Sensor
  • Gap Sensor
  • Black Mark Sensor
  • Cover Open Sensor
Media Thickness 7.48 mil
Maximum Roll Diameter 2.20"
Maximum Label Width 4.41"
Fonts & Emulation
Language Emulation
  • SLCS
  • BPL-Z
  • BPL-C
  • ZPL II
  • CPCL
Software
Operating System Supported
  • Windows
  • iOS
  • Linux
  • Android
Power Description
Power Source Battery
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Capacity 2850 mAh
Environmental Conditions
Operating Temperature 5°F (-15°C) - 122°F (50°C)
Operating Relative Humidity 10% - 80%
Storage Temperature -22°F (-30°C) - 158°F (70°C)
Physical Characteristics
Height 2.6"
Width 5.6"
Depth 5.4"
Weight (Approximate) 1.17 lb
Miscellaneous
Package Contents
  • SPP-L410 4 inch Mobile Label Printer
  • Belt Clip
  • Battery
  • Battery Charger
  • Power Cord
Compatibility
  • iPod
  • iPad
  • iPhone
Platform Supported PC
Energy Star Yes
Dokumente
ico-plus ico-minus
Produktdokument spp-l410.pdf SPP-L410WK5 Produktdokument spp-l410.pdf MOD-SPP-L410
