Zebra

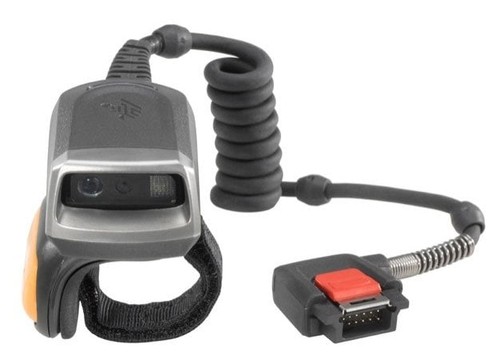

Zebra RS5000-LCFSWR Tragbare Leser

SKU:

RS5000-LCFSWR

handheld scanner, 2D, imager, 4.5 - 63.5cm reading distance, trigger, 116 scans/sec., 0,057kg, protection class: IP65, incl.: cable
Beschreibung
ico-plus ico-minus
Präsentation des Zebra RS5100 Bluetooth Ring Scanners, dem 'Überall-hin' Einfinger-Featherweight und robusten Ring Scanner. Der RS5100 bietet ein komfortables, federleichtes und dennoch robustes Industriedesign für den Einsatz zu Hause oder überall in Ihrer Einrichtung. Mehrere LEDs auf der Rückseite des RS5100 können blinken, um anzuzeigen, ob die Mitarbeiter nach links oder rechts abbiegen oder geradeaus weitergehen sollen. Kombinieren Sie den RS5100 mit praktisch jedem Zebra Enterprise-Klasse Mobilgerät, um das volle Funktionsspektrum freizuschalten. Mit Unterstützung für Bluetooth der Klasse 1 können Sie bis zu 300 Fuß/91,44 m vom Hostgerät entfernt arbeiten, ideal in Kombination mit fahrzeugmontierten Computern oder einem Dongle in einem Laptop oder einem anderen Gerät. Mit NFC können Mitarbeiter den RS5100 einfach auf NFC-fähige Zebra-Geräte, wie den WT6000 Wearable Computer und den TC52 Handheld Mobile Computer, tippen.

Hauptmerkmale

  • Robust: Industrial

  • Scanner-Funktionalität: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
Scan Engine Model SE4710
Image Sensor Type Imager
Scan Rate 116 scan/s
Scan Pattern Omni-directional
Scanner Range Standard Range
Scanning Distance 25"
Cable Type Included USB
Field of View (Horizontal) 42°
Field of View (Vertical) 28°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 96900 lux
Drop Specification

Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range

Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 5 mil
Physical Characteristics
Form Factor Wearable
Rugged Yes
Color Family Gray
Product Color Dark Gray
Width 1.3"
Depth 1.1"
Length 2"
Weight (Approximate) 2.68 oz
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage
  • Industrial
  • Manufacturing
  • Retail
  • Transportation
  • Warehouse
Dokumente
ico-plus ico-minus
Produktdokument rs5000.pdf RS5000-LCFSWR Produktdokument rs5100.pdf MOD-RS5100
