Star Micronics

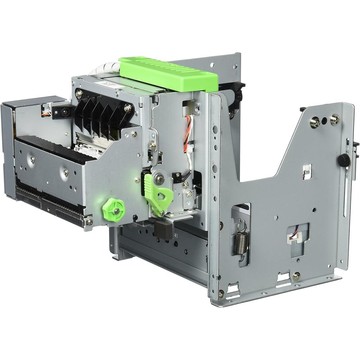

Star Micronics 39470000 Kiosk-Drucker

SKU:

39470000

Kiosk Receipt Printer, Star TUP500, Thermal, Cutter, 8.66 ips, Presenter. Requires Power Supply Sold Separately (Part# 30781753). Compatible Interface Boards Sold Separately: Ethernet (Part# 39607800), Parallel (Part# 39607211), Serial (Part# 39607200), Serial 9 Pin (Part# 39607300), USB (Part# 39607510). Also Known As: TUP592-25
Beschreibung
ico-plus ico-minus

The Star TUP500 Series Receipt Printer is the ultimate high-speed compact kiosk printer solution, designed for seamless integration into various applications, including public information kiosks, gaming, and web kiosks. With a print speed of up to **220mm/s** and adjustable paper widths from **45mm to 82.5mm**, this versatile printer ensures enhanced reliability with an MCBF of **60 million lines**. Its innovative looping presenter virtually eliminates paper jams, enhances document security, and keeps your operational area clean. Upgrade your printing experience with the TUP500, offering superior performance in a compact design.


Key Features:

  • High-Speed Printing: Up to 220mm/s
  • Adjustable Print Width: 45mm - 82.5mm
  • Looping Presenter: Prevents paper jams
  • Large Paper Roll Support: Up to 10" with optional holder
  • Modular Design: Easy integration for various applications
  • Reliable Guillotine Cutter: Ensures clean cuts
  • Two-Color Printing: Optional flashing LED bezel for attention

Specifications:

  • Print Method: Direct Thermal
  • Print Speed: Up to 220mm/s
  • Paper Width: 45 – 82.5mm (adjustable)
  • Paper Thickness: 0.06 - 0.15mm
  • Paper Diameter: Max 150mm (Max 254mm with Large Paper Roll Holder)
  • Emulation: Star Line Mode, Star Page Mode, ESC/POS™
  • Power: DC24V
  • Resolution: 203 dpi
  • MCBF: 60 Million Lines
  • Cutter Life: 1 Million Cuts
  • Presenter Life: 1 Million Receipts
  • Dimensions: W=160mm, H=179mm, D=235mm (without paper)
  • Warranty: 3-Year Limited Warranty for US and Canada

Hauptmerkmale

  • POS: Ja

  • Verbindung: Serial, USB, Ethernet

  • Drucktechnologie: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 8.66 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 3.15"
Barcode Symbology Supported
  • UPC-A
  • UPC-E
  • JAN
  • EAN-8
  • EAN-13
  • ITF
  • Code 39
  • Code 93
  • Code 128
  • Codabar
Application/Usage Desktop
Features
  • Auto-cutter
  • Compact
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Cutter
Cutter Yes
Cutting Method Automatic
Media Types & Handling
Media Type Receipt
Media Sensor
  • Out Of Paper Sensor
  • Paper Low Sensor
  • Reflective Media Sensor
Media Thickness 5.91 mil
Maximum Roll Diameter 5.91"
Maximum Label Width 3.25"
Fonts & Emulation
Language Emulation ESC/POS
Power Description
Power Source Power Adapter
Input Voltage 24 V DC
Physical Characteristics
Height 7"
Width 6.3"
Depth 9.2"
Miscellaneous
Platform Supported
  • Mac
  • PC
Warranty
Limited Warranty 3 Year
