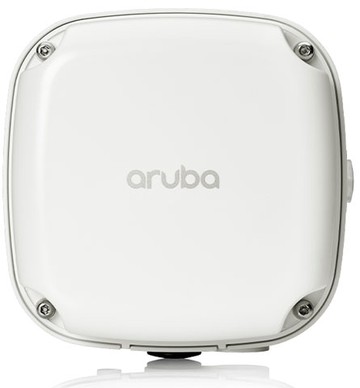

HPE Aruba R4W59A Drahtlose Zugangspunkte

The 560 Series Outdoor APs provide reliable Wi-Fi 6 connectivity in medium-density outdoor and warehouse environments. Dual 2×2:2 radios support OFDMA and MU-MIMO for up to 1.49 Gbps aggregate throughput, handling video, voice and IoT traffic. The rugged enclosure endures temperatures from –40 °C to +65 °C, moisture, dust and high winds up to 165 mph. Integrated Bluetooth 5 and Zigbee radios enable native IoT and location services, while Zero Touch Provisioning and Aruba Central simplify large-scale deployments. Dynamic Segmentation and policy enforcement firewalls secure traffic end‐to‐end.

Key Features

• Up to 1.49 Gbps combined throughput (HE80/HE20)
• OFDMA, MU-MIMO and Target Wake Time for efficiency
• Weather-hardened: –40 °C to +65 °C, moisture and wind resistant
• Built-in Bluetooth 5 & Zigbee for IoT networks
• Zero Touch Provisioning via Aruba Central
• Dynamic Segmentation and policy enforcement firewall

Specifications

• Radios: dual 2×2:2 802.11ax on 5 GHz and 2.4 GHz
• Models: AP-565 (internal omni) or AP-567 (integrated directional)
• Ethernet: single 1 GbE RJ-45 port
• Power: 802.3af/at PoE or 12 V DC
• Max Power Draw: 15.6 W peak; idle 4.2 W; deep sleep 1.7 W
• Dimensions: 110 × 165 × 165 mm; Weight: 1.09 kg
