Elo

Elo E334726 Monitore

SKU:

E334726

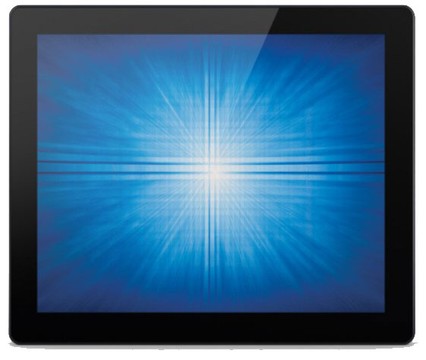

17" Touchscreen Monitor - Elo 1790L - Open-Frame LCD - 5:4 Aspect Ratio - SecureTouch Single-Touch - 1280 x 1024 - 16.7 million Colors - 220 nits Brightness (typical) - LED Backlight - 1000:1 Contrast Ratio (typical) - HDMI - VGA & Display Port Video Interface - Dual Serial/USB Touch Controller Interface - Anti-Glare - Bezel - ?L? (Side Mount) Brackets - Black - 3-Year Warranty - No Power Brick - Worldwide. Box Includes HDMI Cable (Part# E538507) - VGA Cable - RJ45 OSD Remote (Part# E483757) - Touch USB Cable (Part# E546861) - Quick Install Guide - EEI Label - Japan Class-B TM Info Sheet - ?L? (Side Mount) Brackets and w/ Screws (Part# E147211).
Beschreibung
ico-plus ico-minus

The Elo 1790L 17-inch Open-Frame Touch Display stands out for its sleek design and robust performance, making it an ideal choice for various applications, including kiosks, gaming, and industrial automation. With its advanced energy-saving LED backlight and drift-free operation, this display ensures reliability and clarity, enhancing user interaction. Sealed against dust and liquids, it simplifies integration into any enclosure, while the choice of touch technologies offers versatility for all your touch needs.


Key Features

  • Built for Touch: Proven Elo expertise and reliability.
  • Mounting Options: Rear-mount and VESA compatible.
  • 3-Year Warranty: Offering peace of mind.
  • Energy-Efficient: High-quality energy-saving LED panel.
  • Touch Technology: Options include AccuTouch, IntelliTouch, SecureTouch, and PCAP.
  • Durable Design: Sealed against dirt, dust, and liquids.
  • Versatile Applications: Suitable for gaming, retail, and industrial use.

Specifications

  • Model: 1790L
  • Diagonal Size: 17 inches
  • Native Resolution: 1280 x 1024 at 60Hz
  • Brightness: 250 nits (LCD panel)
  • Contrast Ratio: 800:1
  • Response Time: 5ms
  • Input Video Formats: VGA, DisplayPort
  • Mounting Options: 75 mm or 100 mm VESA mount
  • Power Consumption: 22W (ON), 1.1W (SLEEP), 0.5W (OFF)
  • Weight: 7.9 lb (3.6 kg)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Warranty: 3 years standard

Hauptmerkmale

  • Berührung: Ja

  • Verbindung: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 17"
Viewable Screen Size 17"
Screen Mode SXGA
Response Time 5 ms
Aspect Ratio 5:4
Mount Type
  • Front Mount
  • Rack-mountable
Backlight Technology LED
Video
Maximum Resolution 1280 x 1024
Color Supported 16.7 Million Colors
Contrast Ratio 800:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Type Surface Acoustic Wave
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
DisplayPort Yes
Power Description
Operating Power Consumption 17.80 W
Physical Characteristics
VESA Mount Compatible Yes
Product Color Black
Height 12.1"
Width 14.5"
Depth 1.9"
Weight (Approximate) 7.94 lb
Miscellaneous
Package Contents
  • 1790L 17" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • Japan Class-B info sheet
Certifications & Standards
  • TÜV
    		•
    Environmentally Friendly Yes
    Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • China Restriction of Hazardous Substances (China RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    Limited Warranty 3 Year
    Dokumente
    ico-plus ico-minus
    Produktdokument 1790l-2021.pdf E334726 Produktdokument 1790l.pdf MOD-1790L
