Datalogic

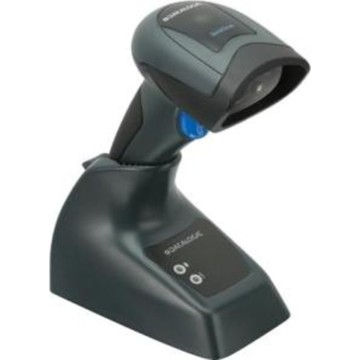

Datalogic QM2131-BK-433K1 Handheld Barcode-Scanner

SKU:

QM2131-BK-433K1

Datalogic QuickScan QM2131 cordless scanner, retail, 1D, linear imager, 400 scans/sec., multi-interface (RS232, KBW, USB), cordless, 433 MHz, IP42, incl.: cable (USB), charging/transmitter cradle, colour: black
Beschreibung
ico-plus ico-minus

The Datalogic QuickScan QM2131 Barcode Scanner is designed for optimal performance in a wide range of applications, from retail POS checkouts to inventory management. With its extra-wide scan angle and enhanced depth of field, this scanner simplifies the reading of long bar codes, making it user-friendly and efficient. Its stylish design matches the QuickScan series, while cordless communication options via Bluetooth® or Datalogic's STAR Cordless System™ provide flexibility in the workplace. Experience reliability and advanced features with the QuickScan QM2131, ensuring your data capture needs are met with precision.


Key Features

  • Extra-wide scan angle for easy reading of long bar codes
  • Bluetooth® wireless technology or Datalogic STAR Cordless System™
  • User-replaceable lithium-ion battery with long-lasting performance
  • Batch mode capability with storage for over 500 linear codes
  • Datalogic's patented Green Spot technology for good-read feedback

Specifications

  • Wireless Communications:
    • Datalogic STAR2.0 Cordless System
    • Bluetooth Wireless Technology: 2.4 GHz, 25 m range
  • Decoding Capability:
    • 1D/Linear Codes, auto-discriminates standard 1D codes
  • Reading Performance:
    • Read Rate: 400 reads/sec
    • Field of View: 56° +/-2°
  • Electrical:
    • Battery: Lithium-Ion 1400 mAh
    • Charge Time: 4 hrs @ 12 VDC
  • Environmental:
    • Operating Temp: 0 to 50 °C
    • Drop Resistance: Withstands drops from 1.5 m
  • Physical Characteristics:
    • Dimensions: 16.3 x 9.1 x 4.1 cm
    • Weight: 190 g

Hauptmerkmale

  • Gehäusefarbe: Black

  • Konnektivität: Cordless

  • Verbindung: Serial, USB

  • Scanner-Funktionalität: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Barcode Symbology Supported 1D / Linear Codes
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • UPC A/E Composites
Image Sensor Type Imager
Scan Rate 400 scan/s
Cable Type Included USB
Reading Angle (Skew) 70°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 45°
Maximum Ambient Light 120000 lux
Drop Specification

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

Minimum Print Contrast 25%
Network & Communication
Radio Frequency Yes
Interfaces/Ports
Host Interface
  • Serial
  • USB
  • Keyboard Wedge
Physical Characteristics
Form Factor Handheld
Product Color Black
Height 6.4"
Width 1.6"
Depth 3.6"
Weight (Approximate) 6.70 oz
Miscellaneous
Additional Information

USB Cable separate

Ingress Protection (IP) Rating IP42
Platform Supported
  • iOS
  • Android
