Datalogic

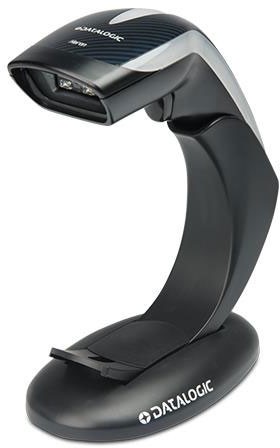

Datalogic HD3430-BKK1B Handheld Barcode-Scanner

SKU:

HD3430-BKK1B

Corded Barcode Scanner, Datalogic Heron 3400, 2D Area Imager, General Purpose, Handheld, Black. Kit inc. 2D Barcode Scanner and Autosense Stand. Kit inc. 2D Scanner, Autosense Stand and USB Cable
Beschreibung
ico-plus ico-minus
The DataLogic Heron HD3430 Barcode Scanner is the epitome of elegance and performance at the modern point-of-sale. This advanced 2D area imager not only reads 1D and 2D codes with exceptional accuracy but also integrates image capture for versatile operations. Featuring a sleek design and customizable aesthetics, including captivating color-changing LEDs and audio feedback, the Heron HD3430 enhances customer interactions while reinforcing brand identity. Ideal for fashion and specialty retail, this scanner is your reliable partner for maximizing checkout efficiency without compromising on style.
Key features:
  • Outstanding reading performance on 1D, 2D, postal, stacked, and composite codes
  • Innovative design enhances the customer experience at POS
  • Customizable with logo, top cover, and audio feedback
  • Datalogic's patented Green Spot technology for good-read feedback
  • Automatic switching between handheld and hands-free operations
  • Easily adjustable illumination and aiming system

Specifications:
  • Decoding Capability: 1D, 2D, postal, stacked codes
  • Electrical:
    • Power Consumption: < 500 mA @ 5V (Max)
    • Input Voltage: 5 VDC ± 5%
  • Environmental:
    • Drop Resistance: Withstands drops from 1.5 m
    • Humidity: 5-90% (non-condensing)
    • IP Seal Rating: IP40
  • Physical Characteristics:
    • Available Colors: Black, White
    • Dimensions: 15.2 x 15.3 x 6.8 cm
    • Weight: 150 g
  • Warranty: 5-Year Factory Warranty

Hauptmerkmale

  • Gehäusefarbe: Black

  • Konnektivität: Corded

  • Verbindung: USB

  • Scanner-Funktionalität: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D / LINEAR CODES
  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
2D CODES
  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
POSTAL CODES
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
STACKED CODES
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type Imager
Scan Rate 270 scan/s
Scan Pattern Single Line
Scanning Distance 15.75"
Cable Type Included USB
Stand Included Yes
Reading Angle (Skew) 60°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 25 in/s
Maximum Ambient Light 100000 lux
Drop Specification Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Minimum Element Resolution (DataMatrix) 15 mil
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Height 6"
Width 2.7"
Depth 6"
Weight (Approximate) 5.29 oz
Miscellaneous
Additional Information

USB Cable separate
Ingress Protection (IP) Rating IP40
Application/Usage
  • Industrial
  • Retail
Country of Origin Vietnam
