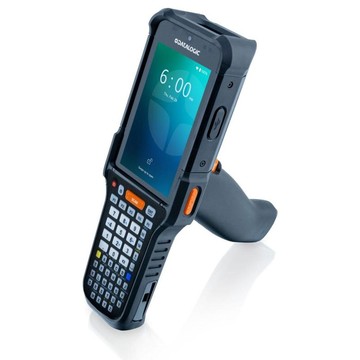

Datalogic 946650004 Handheld-Terminals

The Datalogic FALCON-X65 is a rugged pistol-grip handheld computer engineered for intensive mobile data capture and field operations. Designed for logistics, warehousing, transportation and field service, the device combines a high-visibility 4.3-inch touch display, configurable physical keyboards and multiple scan engine options to accelerate barcode workflows. Integrated cellular (4G/5G), Wi‑Fi 6/6E, Bluetooth 5.3 and NFC provide persistent connectivity for real-time data exchange, while a large removable 7,000 mAh battery with hot-swap and wireless charging ensures continuous operation. Robust MIL-STD and IP65/IP68 protection deliver reliability in demanding industrial environments, complemented by enterprise software and proven security features for streamlined deployment and management.

Key Features

• Rugged reliability: Engineered to withstand multiple drops to concrete, 1.0 m tumbles and rated IP65/IP68 to ensure dependable operation in industrial and outdoor environments.
• Advanced connectivity: Native Wi‑Fi 6/6E, Bluetooth 5.3, NFC and optional WWAN with 4G/5G support enable secure, global real-time communications and private network compatibility (CBRS).
• Power and charging: High-capacity removable 7,000 mAh Li‑Ion battery with hot-swap capability, fast USB-C charging and WPC Qi EPP 10W wireless charging to maximize uptime.
• Optimized data capture: Configurable 1D/2D scan engines (Standard-Range, Extended and Extra-long Range options), Datalogic Green Spot feedback and integrated cameras for versatile capture scenarios.
• Ergonomic input and display: High-bright 4.3" WVGA touch with Gorilla Victus, multi-touch support and multiple physical keyboard options (31-, 41- and 53-key) for efficient data entry.
• Enterprise-ready platform: Qualcomm octa-core performance, Android v15 with upgrade path, 8 GB RAM/128 GB UFS storage and Datalogic Mobility Suite for provisioning, security and device management.

Specifications

• Brand: Datalogic
• Model: FALCON-X65 Handheld Computers
• Category: Handheld Computers
• Form factor: Pistol Grip (variants also include different keyboard layouts)
• Scan engine: Standard-Range 2D (variants available; Extended and Extra-long Range options referenced)
• Cellular WWAN: 3G/UMTS/HSPA+, LTE-Advanced (4G+), NR 5G FR1; 3GPP Rel.16; data only; global band support; private networks and CBRS
• WLAN: Wi‑Fi 6/6E IEEE 802.11 a/b/g/n/ac/ax (2.4/5/6 GHz), 2x2 MU‑MIMO, WPA3 Enterprise 192-bit mode
• Bluetooth: v5.3 (Classic and BLE)
• NFC: Tag types 2/3/4/5 (ISO14443-4 A/B; ISO15693; Mifare; Felica); reader and card emulator
• GPS / GNSS: GPS, Galileo, GLONASS, BeiDou; A‑GPS; dual band L1 + L5
• SIM slots: 1 Nano SIM; 1 eSIM (Falcon X65 only)
• Memory: 8 GB RAM
• Storage: 128 GB UFS
• Expansion: MicroSD card slot (up to 2 TB)
• CPU: Qualcomm Dragonwing 4490 Octa-Core @ 2.4 GHz
• Operating System: Android v15 (GMS and AOSP), platform upgradeable
• Battery: Removable Li‑Ion 3.63 V, rated 7,000 mAh (25.445 Wh); hot swap supported; fast USB‑C charging
• Wireless charging: WPC Qi EPP compatible, 10W
• Display: 4.3-inch LCD A‑Si IPS WVGA (480 x 800), 600 nits typical
• Touch panel: 5-point multi-touch capacitive with Corning® Gorilla® Glass Victus® and optical bonding; glove and stylus support
• Physical keyboards: 31-key Numeric; 41-key Functional Numeric; 53-key Alphanumeric (backlit)
• Dimensions (pistol grip): 232 x 80 x 165 mm / 9.13 x 3.15 x 6.50 in
• Weight (pistol grip with battery): 700 g / 24.7 oz
• Drop resistance: Multiple 2.8 m / 9.2 ft drops to concrete (MIL‑STD‑810H); 2.4 m / 7.9 ft over operating temp
• Tumble: 4000 tumbles at 1.0 m (IEC 60068‑2‑32)
• Ingress protection: IP65 and IP68 with battery (IEC60529)
• Chemical resistance: Resistant to common industrial cleaners including sodium hypochlorite 0.8%, ethyl/isopropyl alcohol 70%, hydrogen peroxide 3% and select ammonia cleaners
• Operating temperature: -20 to 50 °C / -4 to 122 °F
• Storage/transport temperature: -30 to 70 °C / -22 to 158 °F
• Cameras: Rear 13 MP autofocus with LED illumination (torch); Front 8 MP fixed focus
• Scan feedback: Datalogic Green Spot for good-read confirmation (visible up to ~10 m for extra-long range)
• Interfaces: High-Speed USB 3.2 Gen1 Type‑C (host/client), SuperSpeed USB 2.0 Type‑C, Gigabit Ethernet via multi-slot dock
• Audio: Dual microphones with noise cancellation; speaker for handsfree calls and audio apps
• Sensors: 3-axis accelerometer, gyroscope, magnetometer (e-compass), ambient light sensor, proximity sensor, programmable vibration, barometer (Falcon X65 only)
• Security & regulatory: EU RoHS compliant; laser Class 2 (IEC/EN60825‑1); LED Exempt Risk Group IEC/EN62471
• Software & management: Datalogic Mobility Suite (provisioning, security, SDKs, optimization and UEM/EMM compatibility)
• Warranty: 1-Year Factory Warranty
