Bixolon

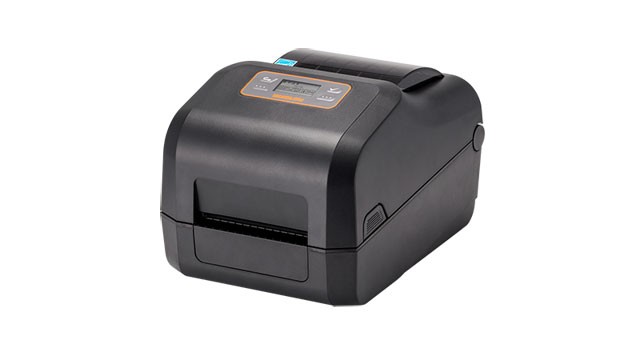

Bixolon XD5-40TEK Etikettendrucker

SKU:

XD5-40TEK

label printer, thermal transfer, resolution: 8 dots/mm (203 dpi), media width (max.): 118 mm, print width (max.): 108 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB (type B), USB Host, RS232, Ethernet, emulation: EPL, ZPLII, SLCS, RAM: 64 MB, Flash: 128 MB, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable, colour: black
Beschreibung
ico-plus ico-minus
The Bixolon XD5-40 Barcode Label Printer is a robust and versatile solution designed for various industries, including manufacturing, logistics, retail, and healthcare. With its compact clamshell design, it supports both Direct Thermal and Thermal Transfer printing methods and offers exceptional print speeds of up to 7 inches per second. The printer caters to diverse labeling needs with options for high-resolution output and RFID capabilities, ensuring reliability and performance for your business operations.
Key features:
  • Fast printing speeds: Up to 7 ips (XD5-40d) and 6 ips (XD5-40t)
  • High resolution: Optional 300 dpi for fine print quality
  • Connectivity options: Dual-band WLAN and Bluetooth V5.0
  • Enhanced memory: Up to 256MB SDRAM and 256MB Flash
  • Field-installable features: Peeler and Auto Cutter

Specifications:
  • Print Method: Direct Thermal (XD5-40d), Thermal Transfer (XD5-40t)
  • Print Speed: Up to 7 ips (XD5-40d), 6 ips (XD5-40t)
  • Print Resolution: 203 dpi (XD5-40d, XD5-40t) | 300 dpi (XD5-43d, XD5-43t)
  • Media Width: 15 ~ 118 mm
  • Memory: Standard: 64MB SDRAM, 128MB Flash | Optional: 256MB SDRAM, 256MB Flash
  • Operating Temperature: 0 ~ 40°C (XD5-40d), 5 ~ 40°C (XD5-40t)
  • Dimensions: XD5-40d: 194x248x169 mm | XD5-40t: 210x284x188 mm
  • Weight: XD5-40d: 1.89 kg | XD5-40t: 2.48 kg

Hauptmerkmale

  • Ausrüstungsformat: Desktop

  • Verbindung: Serial, USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 6 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 39.37"
Maximum Print Width 4.25"
Barcode Symbology Supported
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • QR Code
  • TLC 39
Application/Usage Desktop
Features
  • Compact
  • LCD Display
Connectivity Technology Wired
Optional Connectivity
  • Wireless LAN
  • Bluetooth
Fonts Included
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 64 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Gap
  • Black Mark
  • Notch
  • Fanfold
  • Continuous Label
Media Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness 7.87 mil
Maximum Roll Diameter 5"
Maximum Label Width 4.65"
Fonts & Emulation
Language Emulation
  • SLCS
  • BPL-Z
  • ZPL II
  • BPL-E
  • EPL
Power Description
Power Source
  • AC Supply
  • Power Adapter
Input Voltage
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
Storage Temperature -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 7.4"
Width 8.3"
Depth 11.2"
Weight (Approximate) 5.47 lb
Miscellaneous
Platform Supported
  • PC
  • Android
  • iOS
  • Mac
Energy Star Yes
Dokumente
ico-plus ico-minus
Produktdokument xd5-40-data-sheet.pdf XD5-40TEK Produktdokument mod-xd5-40t-bixolon-label-printer-datasheet.pdf MOD-XD5-40T Produktdokument mod-xd5-40t-bixolon-label-printer-quick-guide.pdf MOD-XD5-40T Produktdokument mod-xd5-40t-bixolon-label-printer-user-manual.pdf MOD-XD5-40T
