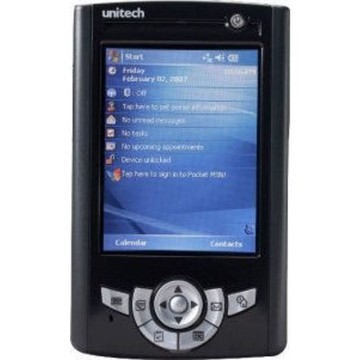

Unitech PA520-9S60UMDG Handheld-Terminals

SKU:

PA520-9S60UMDG

The PA500 Compact Enterprise PDA is a powerful mobile computer with a 520MHz Intel PX270 processor. The built-in 802.11b/g and Bluetooth Class 2 connectivity replaces the need for separate GPRS connections, thereby eliminating GPRS packet data costs. GPRS can be achieved through a Bluetooth Dialup Network connection to a GPRS enabled phone
Beschreibung
ico-plus ico-minus

The Unitech PA520 Mobile Computer is a robust and compact enterprise PDA designed to streamline your mobile workforce's effectiveness. Weighing only 220g and featuring a 3.5" QVGA/VGA touch screen, it is highly portable and user-friendly. With integrated Wi-Fi and Bluetooth connectivity, along with a powerful 1D/2D imager, RFID reader, and NFC support, this device enhances data input and scanning efficiency, making it perfect for sales automation and field service applications.


Key Features
  • Compact Design: Lightweight and pocket-sized form factor.
  • High-Performance OS: Runs on Microsoft Windows Handheld 6.5.
  • Multi-Functionality: Supports 1D/2D barcode scanning and optional RFID HF/NFC.
  • Advanced Connectivity: Bluetooth 2.1 + EDR and WLAN 802.11 a/b/g/n for seamless communication.
  • Durability: Designed for rugged use with IP42 sealing and drop resistance from 1.0m.

Specifications
  • CPU: TI AM3703 800MHz
  • Memory: 512MB Mobile DDR RAM, 512MB NAND Flash
  • Display: 3.5" Capacitive Multi-Touch screen, QVGA 240x320/VGA 480x640
  • Battery: 8.9 Watt-Hour 3.7V @ 2400mAh
  • Weight: 220g
  • Dimensions: 125.9mm x 25.0mm x 76.0mm
  • Environmental Sealing: IP42
  • Operating Temperature: 0°C to 50°C
  • Drop Test: 1.0 meter

Hauptmerkmale

  • RFID: Ja

  • System: Windows

  • Robust: Industrial

  • Verbindung: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Light Source Laser
Barcode Symbology Supported 1D:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved & Std. 2 of 5
  • EAN 128
  • Code 11
  • Delta
  • MSI/Plessey
  • Code 128
  • Toshiba
  • RSS expended
  • RSS Limited
  • RSS14
Drop Specification 39.37"
Processor & Chipset
Processor Manufacturer Texas Instruments
Processor Type Cortex A8
Processor Speed 800 MHz
Memory
Standard Memory 512 MB
Flash Memory 512 MB
Memory Card Slot Yes
Memory Card Supported microSD
Maximum Memory Card Size Supported 32 GB
Display & Graphics
Screen Size 3.5"
Screen Mode
  • VGA
  • QVGA
Screen Resolution 480 x 640
Display Screen Type LCD
Touchscreen Information
Touchscreen Yes
Touchscreen Type Capacitive
Keyboard/Keypad
Number of Keys 22
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Bluetooth Yes
Interfaces/Ports
USB Yes
Software
Operating System Microsoft Windows Embedded Handheld 6.5 Classic
Battery Information
Battery Capacity 2400 mAh
Battery Included Yes
Physical Characteristics
Height 5"
Width 3"
Depth 1"
Weight (Approximate) 7.76 oz
Miscellaneous
Package Contents
  • Rugged Enterprise PDA
  • Battery
Certifications & Standards
  • CCX Version 4 Certification
  • IP42
  • CE
  • NCC
  • FCC
  • BSMI
  • VCCI
  • CCC
Environmentally Friendly Yes
Environmental Certification RoHS
Warranty
Limited Warranty 1 Year
