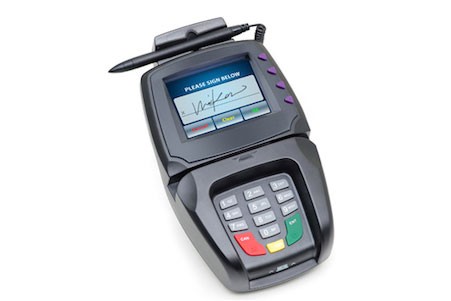

UIC UIC-PP795SE Kartenleser

The UIC PP795SE Signature Pad is a secure and versatile PCI-approved PINpad payment reader, designed to enhance your cashless transactions. With advanced signature capture technology, this compact solution integrates magnetic stripe, smart card, and contactless readers, ensuring flexibility for any retail or financial application. Its ergonomic design and user-friendly interface make it an ideal choice for businesses looking to streamline their payment processes while maintaining high security standards.

Key Features

• Fully Programmable: Supports multiple applications like gift card issuance and loyalty programs.
• High Performance: Operating speed of 10 IPS to 40 IPS.
• Advanced Security: Certified PCI 3.0, EMV Level 1 & 2.
• Multiple Payment Options: Integrated magnetic stripe, smart card, and optional contactless readers.
• User-Friendly Design: Ergonomic layout and TFT electronic signature touchpad.
• Environmental Support: Operates in a wide temperature range from 0°C to 40°C.

Specifications

• Mechanical:
  • Dimensions: L 218 x W 122 x H 61 (mm)
  • Weight: 600g
• Electrical:
  • Processor: 32-bit processor with MMU
  • Memory: Options of 16MB or 32MB Flash; 16MB SDRAM; 128KB SRAM with battery backup
  • Touch Screen: 3.5" LCD panel 320x240 pixels with backlight
  • Keypad: 10 numerical keys, 3 function keys, 4 programmable function keys
• Environmental:
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -18°C to 70°C
• Communication:
  • USB, RS232, USB + Power, Powered RS232; 10/100 BaseT Ethernet
  • Micro SD Card Reader (supports up to 2GB memory size)
• Security:
  • PCI: PCI 3.0 approved for on-line and off-line
  • EMV: Level 1 and Level 2 certified
