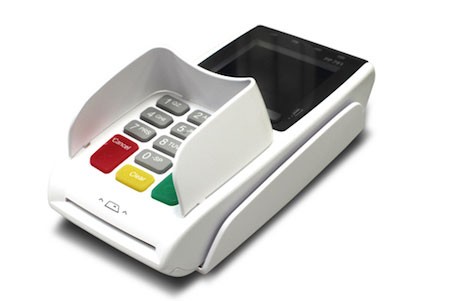

UIC UIC-PP791 Kartenleser

The UIC PP791 Payment Terminal is a state-of-the-art countertop PINpad device, ideal for retail and banking environments. Built to meet PCI, Interac, and EMV standards, it ensures maximum security with robust encryption methods, including TDES and AES. This versatile terminal supports magnetic stripe, chip and pin, and contactless payments, and comes equipped with Ethernet, WiFi, and optional Bluetooth connectivity. Designed for performance, the PP791 is adept at handling transactions swiftly and securely, making it a perfect choice for businesses looking to enhance their payment processing capabilities.

• Versatile Payment Options: Integrates magnetic stripe, IC card reader, and contactless options, NFC ready.
• Connectivity Choices: Options for Ethernet, WiFi, and Bluetooth for seamless integration.
• High-Security Standards: Complies with EMV Level 1 & Level 2, PCI 3.1, and TQM.

• Mechanical:
  • Dimensions: L:173 mm x W: 87 mm x D: 43 mm
  • Weight: 320g
  • Display: 2.7" color LCD 320x240 pixels with backlight
  • Keypad: 16 keys; 3 programmable function keys included
• Environmental:
  • Operating Temperature: 0°C to 40°C
  • Operating Humidity: 5% to 95%
  • Storage Temperature: -20°C to 70°C
  • Storage Humidity: 5% to 95%
• Electrical:
  • Processor: 400MHz 32-bit
  • Memory: 4GB eMMC Flash; 64MB SDRAM
  • Magnetic Card Reader: ISO 7811; triple track reading
  • Smart Card Reader: ISO 7816, CPU card/T=0 & T=1
  • SAM Module: 0 or 3 SAM module sockets
  • Contactless: Supports ISO14443 Type A & B
  • Communication: USB, RS232, USB + Power, 10/100Base-T Ethernet, WiFi + Bluetooth (optional)
  • Power: 5V-12V, 500mA
• Security Requirements:
  • PCI: Approved for online and offline PIN
  • EMV: Level 1 and Level 2 certified
  • Contactless: Supports various contactless payment systems (MasterCard PayPass, VISA payWave, etc.)
• Performance:
  • Magnetic Card Operating Speed: 10 IPS to 40 IPS
  • Smart Card: Supports 3V and 5V card types
  • Magnetic Head Life: 1,000,000 swipes
