Samsung

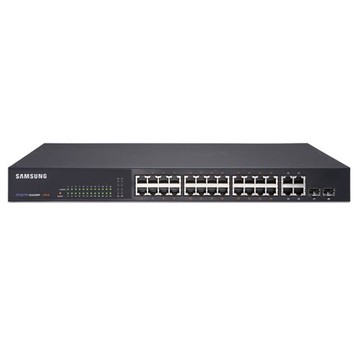

Samsung IES-4028XPXAR Schalter

SKU:

IES-4028XP/XAR

L2 Switch PoE 24 x 10/100/10001G/10G, PoE+ (740W)
Beschreibung
ico-plus ico-minus

The Samsung Ubigate iES4000 Series Ethernet Switches provide a robust and cost-effective networking solution, designed to keep your business connected efficiently. Ideal for today's competitive environment, these switches fully integrate with Samsung OfficeServ telephony systems, enhancing voice and video communication over IP. With features like Power over Ethernet (PoE), businesses can reduce complexity by eliminating the need for additional wiring and adapters, making it perfect for growing companies that require reliable, seamless communication infrastructure.


Key features:
  • 24 Fast Ethernet ports for iES4028F and iES4028FP; 10/100/1000 Gigabit ports for iES4024GP
  • Power over Ethernet (PoE) options available on select models
  • Clustering up to 36 switches for easy management
  • High performance with 12.8Gbps switch fabric
  • Enhanced security with IEEE 802.1x authentication

Specifications:
  • Ports
    • iES4028F: 24 10/100 BASE-T ports, 2 Gigabit combo ports
    • iES4028FP: 24 10/100 BASE-T ports with PoE, 2 Gigabit combo ports
    • iES4024GP: 22 10/100/1000 BASE-T ports with PoE, 2 Gigabit combo ports
  • Switch Fabric: 12.8Gbps
  • Max Power Consumption: iES4028FP: 225W, iES4024GP: 225W
  • Weight: iES4028F: 3kg, iES4028FP: 4.13kg, iES4024GP: 4.33kg
  • VLAN Support: Up to 256 VLAN entries
  • Management Interfaces: SNMP, Web, Telnet
Technical Specifications
ico-plus ico-minus
Interfaces/Ports
Total Number of Network Ports 24
Uplink Port Yes
Modular Yes
Stack Port No
Port/Expansion Slot Details
  • 24 x Fast Ethernet Network
  • 4 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology
  • Gigabit Ethernet
  • Fast Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
I/O Expansions
Total Number of Expansion Slots 2.0
Expansion Slot Type SFP
Shared SFP Slot Yes
Number of SFP Slots 2
Network & Communication
Layer Supported 4
Physical Characteristics
Height 1.7"
Width 17.3"
Depth 13"
Weight (Approximate) 9.11 lb
