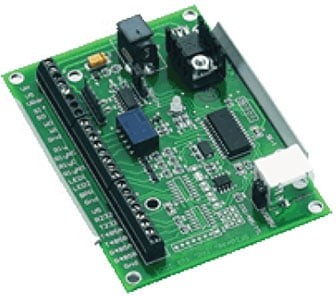

Rfideas OEM-805N1-W Kartenleser

The rf IDEAS Wiegand Converter is a versatile tool designed to seamlessly integrate standard Wiegand-based reader technologies into various applications. This configurable device acts as a pcProxⓇ card data converter, translating Wiegand data outputs to USB, RS-232, or RS-485 interfaces. With built-in flash memory, users can easily customize card information and configurations, making it ideal for applications like machine monitoring, badge verification, and access control systems.

Key Features

• Platform Independent: Works with any operating system supporting USB or serial communication.
• Configurability and Compatibility: Supports any Wiegand device with configurable flash memory.
• Easy Installation: Comes with Snap-Trak installation and optional enclosure.
• Customizable Parameters: Adjust data output formats, keystrokes, and character settings through user-friendly configuration software.

Specifications

• Dimensions: 2.5" x 4.2" x 0.875" (6.35 x 10.6 x 2.2 cm)
• Weight: 0.582 lbs (16.5g)
• Power Supply: 4-16V DC, supplied via USB cable or terminal block
• Operating Temperature: -31° to 150°F (-35° to 65° C)
• Humidity Range: 5% to 95% relative humidity, non-condensing
• Warranty: One year for material/workmanship defects
