Introducing PAX's new retail multi-lane terminal, the PX5. Small footprint but with the biggest display and highest resolution of any mid-sized terminal in the industry. The many different communication options of the PX5 platform and its open architecture software development environment meets the needs for fully or semi-integrated with the POS configurations alike. Our turn-key Px Retailer application allows retailers to quickly integrate the PX5 with existing in-store environments. Alternatively our Px Studio Development environment allows third parties to develop their own PX5 terminal application. In either case, costly re-certification is not required because all of the security and payment functionality is segregated from the terminal application and certified separately.
Modell auswählen
Die Preise konnten nicht aktualisiert werden.
Versand 24-36 Std.
Express-Versand für Bestellungen bis 14:30 Uhr.
Weitere Informationen
Secure payment with
Beschreibung

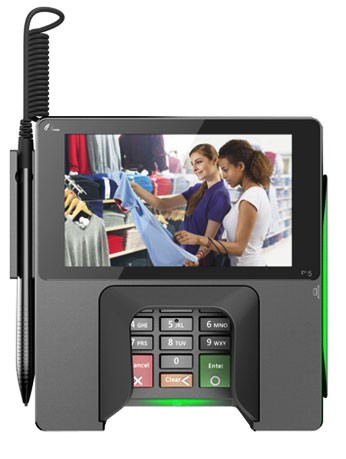

The PAX PX5 Signature Pad is a cutting-edge retail multilane terminal designed for optimal performance and user experience. Its compact size houses a vibrant 5-inch color display, delivering the highest resolution in its class. Equipped with multiple connectivity options and integrated payment functionality, this terminal seamlessly integrates with any POS system, ensuring painless transitions for retailers. Its ergonomic design and multipoint capacitive touchscreen provide a user-friendly experience, making it ideal for high-traffic retail environments.
Key Features:
- Large 5-inch Color Display with high resolution and support for 64K colors
- Multiple Payment Options – Contactless, Chip, and Magstripe capabilities
- Advanced Touch Screen – Supports finger and stylus input for easy electronic signature capture
- Integrated Privacy Shield detection to enhance customer confidence
- Flexible Integration Options with PCI PTS 4.x, SRED compliance
- Ergonomic Design – Tablet-like usability for increased comfort
Specifications:
- Processor: Linux open operating system, 400 MHz, ARM-11
- Memory: 512MB (256MB Flash, 256MB SDRAM), Upgradable
- Display: 5-inch TFT LCD, 800 x 480 pixels
- Keypad: Touch-press input, backlit, 10 numeric keys, 3 function keys
- Card Readers:
- Magnetic Card Reader: Track 1/2/3, bi-directional
- Integrated Smart Card Reader: EMV L1 & L2 certified
- Contactless Card Reader: MSD and Contactless EMV
- Standard Peripheral Ports: 1 x RS232, 1 x PUSB, 1 x Host USB, 2 x Ethernet (1 standard, 1 optional)
- Operating Environment: -10°C to 50°C (14°F to 122°F)
- Certifications: PCI PTS 4.x, EMV Contact L1 & L2
- Dimensions: 6.7 in. (Length) x 6.4 in. (Width) x 2.3 in. (Height)
- Weight: 1.4 lbs.
Dokumente
px5.pdf MOD-PAX-PX5
