Panasonic

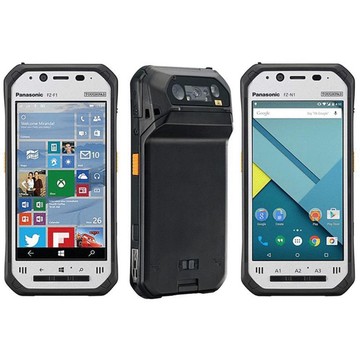

Panasonic FZ-F1BCCAZZM Handheld-Terminals

SKU:

FZ-F1BCCAZZM

Mobile Computer, Panasonic, Toughpad FZ-F1, 4.7-inch HD Display, Windows 10 IoT ME, Qualcomm MSM8974AB 2.3GHz Quad Core, Wi-Fi/Bluetooth/NFC, 2GB/16GB Flash Memory, IP65/IP67, Integrated 2D Barcode Scanner (SE4750), 2 SIM Support, SIM-free, 8MP Rear Camera, 3200 mAh Battery, AC Adapter Not Included
Beschreibung
ico-plus ico-minus

The Panasonic Toughpad FZ-F1 Mobile Computer is an exceptional blend of ruggedness and advanced technology, designed for demanding work environments. Powered by a robust Qualcomm® quad-core processor and running on Windows 10 IoT, this handheld device ensures seamless performance even under pressure. With features such as a high-definition display that supports gloved and wet touch, dual SIM capabilities, and an integrated barcode scanner, the Toughpad FZ-F1 is engineered to enhance productivity on the go. Its MIL-STD-810G and IP65/IP67 ratings mean it withstands drops, dust, and water, making it your reliable partner for tough jobs.


Key Features
  • Windows 10 IoT Mobile Enterprise
  • Angled Rear-Facing Barcode Scanner for increased productivity
  • 6' Drop Resistance and IP65/IP67 Weatherproofing
  • 100dB Speaker with noise suppression
  • Warm-Swappable Battery for uninterrupted usage
  • Multi-Carrier 4G LTE with voice capabilities
  • 3-Year Warranty with business class support

Specifications
  • Processor: Qualcomm® MSM8974AB 2.3GHz Quad-Core
  • Memory: 2GB RAM
  • Storage: 16GB eMMC (Expandable via microSD up to 64GB)
  • Display: 4.7" HD (1280 x 720), daylight-viewable
  • Audio: Integrated Microphones x 3, Twin Speakers up to 100dB
  • Cameras: 8MP Rear Camera, 5MP Front Camera
  • Battery: 3,200 mAh standard, 6,400 mAh optional
  • Weight: Approx. 0.62 lb (0.28 kg)
  • Dimensions: 6.12" x 2.92" x 0.64"

Hauptmerkmale

  • System: Windows

  • Robust: Industrial

  • Verbindung: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Phone Style Bar
Sensor Type
  • Gyro Sensor
  • Ambient Light Sensor
  • Digital Compass
  • Accelerometer
Processor
Processor Speed 2.30 GHz
Processor Core Quad-core (4 Core)
Chipset
Chipset Manufacturer Qualcomm
Memory
Built-in Memory 16 GB
Standard Memory 2 GB
Memory Card Slot Yes
Memory Card Supported
  • microSDXC
  • SD
  • SDHC
Maximum Memory Card Size Supported 64 GB
Display & Graphics
Screen Size 4.7"
Screen Mode HD
Screen Resolution 1280 x 720
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Camera
Rear Camera Single
Rear Camera Resolution 8 Megapixel
Front Camera Single
Built-in Flash Yes
Input Devices
Input Method Touchscreen
Software
Operating System Windows Phone (WP)
Operating System Version Windows 10
Network & Communication
Contract Type SIM-free
Multi-SIM Supported Yes
Number of SIM Card Supported 2
SIM Size Supported Micro
Cellular Generation 4G
Cellular Data Connectivity Technology
  • UMTS
  • LTE
  • EDGE
  • HSPA+
  • GPRS
GPS Receiver Yes
Bluetooth Yes
Bluetooth Standard Bluetooth 4.1
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Near Field Communication Yes
Interfaces/Ports
USB Yes
USB Standard USB 2.0
Battery Information
Battery Talk Time 24 Hours
Battery Standby Time 700 Hours
Battery Capacity 3200 mAh
Physical Characteristics
Height 6.1"
Width 2.9"
Depth 0.6"
Weight (Approximate) 9.92 oz
Warranty
Limited Warranty 3 Year
Dokumente
ico-plus ico-minus
Produktdokument mod-panasonic-toughpad-fz-f1-panasonic-mobile-computing-datasheet.pdf FZ-F1BCCAZZM Produktdokument mod-panasonic-toughpad-fz-f1-panasonic-mobile-computing-user-manual.pdf FZ-F1BCCAZZM Produktdokument mod-panasonic-toughpad-fz-f1-panasonic-mobile-computing-datasheet.pdf MOD-PANASONIC-TOUGHPAD-FZ-F1 Produktdokument mod-panasonic-toughpad-fz-f1-panasonic-mobile-computing-user-manual.pdf MOD-PANASONIC-TOUGHPAD-FZ-F1
