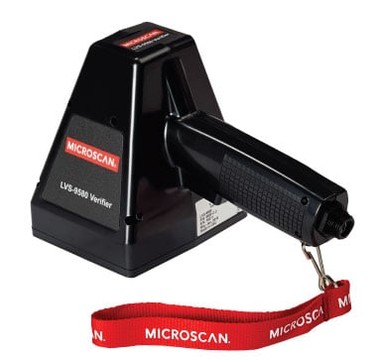

Omron 9580-DPM-HD Barcode-Prüfer

The Omron LVS 9580 Barcode Verifier is a high-performance, portable handheld solution designed for offline barcode verification. Weighing just 16.7 oz, it easily validates both linear (1D) and two-dimensional (2D) codes, meeting ISO/IEC, GS1, and UDI standards. With its advanced 5.0 megapixel camera, it reads and analyzes codes up to 76.19 mm wide and boasts optional software upgrades for enhanced functionality. Ideal for multiple line production and warehouse environments, it ensures your barcodes meet quality standards while providing detailed audit reporting.

• Durable and portable design for on-the-go verification
• Validates printed barcodes to ISO/IEC, GS1, and UDI standards
• Supports 15 languages with expandability
• High-resolution camera supports verification of 2D symbols as small as 2 mil (50 µ)
• Quality data reporting for auditing purposes
• Includes NIST-Traceable Calibration Test Card
• Optional mounting stand adapter for versatile use

• Model Name: LVS 9580
• Weight: 16.7 oz (0.47 kg)
• Camera: 5.0 megapixel
• Field of View: 76.19 mm (3.0") horizontal, 57.15 mm (2.25") vertical
• Minimum Barcode X-Dimension: 1D: 4.0 mil (0.10 mm); 2D: 5.9 mil (0.15 mm)
• Operating Temperature: 4° to 46° C (40° to 115° F)
• USB Powered: 5 VDC @ 180 mA
• Compliance: 21 CFR Part 11 compliant-ready
• Supported Symbologies: 1D, 2D (including Data Matrix, QR Code, and PDF417)
