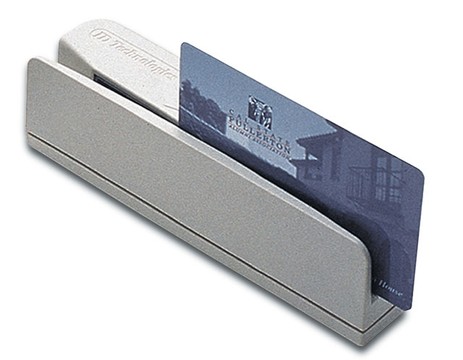

ID Tech ID-TECH-EASYMAG-SERIES Kartenleser
MOD-ID-TECH-EASYMAG-SERIES
Modell auswählen
Key features:
- Bidirectional Reading: Reads magnetic stripes in either direction for enhanced usability.
- Versatile Mounting Options: Can be used free-standing, Velcro mounted, or permanently fixed.
- Fast and Dependable: Designed for quick and reliable card swipes.
- Data Editing Capabilities: Programs for divide, rearrange, edit, and validate data fields.
- Easy Integration: Multiple interfaces including USB, RS-232, and keyboard wedge.
Specifications:
- Electrical:
- Power Supply: 5VDC, 70mA
- Operating Temperature: 32°F to 131°F (0°C to 55°C)
- Storage Temperature: -22°F to 158°F (-30°C to 70°C)
- Humidity: Maximum 95% non-condensing
- Reliability:
- Electronics MTBF: 125,000 POH
- Magnetic Head Life: 1,000,000 passes minimum
- Warranty: One year, parts and labor
- Mechanical:
- Swipe Speed: 3 to 55 inches per second
- Card Width: 0.01 to 0.055 inches
- Dimensions: 5.22 x 1.25 x 1.6 inches (133 x 32 x 41 mm)
- Weight: Approximately 8 oz. (with cable)
- Cable Length: 5-foot straight cable
easymag.pdf MOD-ID-TECH-EASYMAG-SERIES
