Honeywell

Honeywell PX4C010000005040 Accessories

SKU:

PX4C010000005040

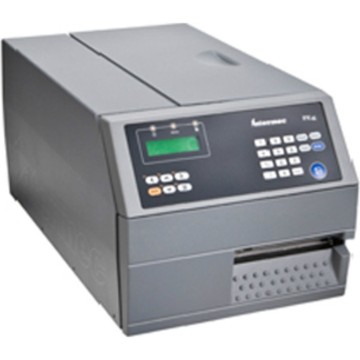

EasyCoder PX4i Direct Thermal-Thermal Transfer Printer (400 dpi, UNIV FW, 16MB/32MB, Self-Strip/LTS)
ico-puzzle-piece-02 Dieses Produkt ist kompatibel mit...
Beschreibung
ico-plus ico-minus
The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX4i features a maximum print width of 4 inches and either 203 or 300-dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX4i printer prints instantly from first to last label at up to 12 inches per second-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.
  • Choice of IPL (Intermec programming language) or Fingerprint/DP printer command language
  • Emulates and replaces competitive and older Intermec printers
  • Flexible connectivity enables use of up to seven wired and wireless interfaces simultaneously
  • Interchangeable printhead provides choice of 203 or 300 dpi print resolution
  • Intermec's Readiness Indicator (IRI) light is a standard feature that facilitates printer management
  • Investment protection - easily adapts to changing host environments and applications
  • Modular design for integration into automated labelling applications
  • Outstanding performance and print quality - prints up to 115 six-inch long compliance labels per minute
  • Reliable - sturdy all-metal construction provides 24/7 printing in harsh industrial environments
  • Supports standalone printer applications, eliminating the expense of PCs
Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 10 in/s
Maximum Print Resolution (dpi) 406
Maximum Print Width 4.33"
Barcode Symbology Supported
  • UCC/EAN 128
  • POSTNET
  • HIBCC
  • ISBT-128
Application/Usage Desktop
Features Self Strip
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 32 MB
Memory Technology SDRAM
Flash Memory 16 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Wireless LAN No
Wireless LAN Standard IEEE 802.11g
Media Types & Handling
Media Type
  • Fanfold
  • Roll Fed
  • Label
  • Ticket
  • Tag
Media Sensor
  • Label Taken Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness 10 mil
Maximum Roll Diameter 8.39"
Maximum Label Width 4.72"
Label Core Size 2.99"
Ribbon Core Size 1"
Fonts & Emulation
Language Emulation
  • Fingerprint
  • IPL
  • DPL
  • XML
  • ZPL
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 9.4"
Width 10.8"
Depth 19"
Miscellaneous
Platform Supported PC
Dokumente
ico-plus ico-minus
Produktdokument Logiscenter_Intermec_PX4i_PX6i.pdf PX4C010000005040
