Honeywell

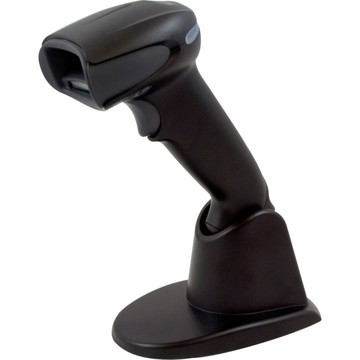

Honeywell 1910GER-2 Handheld Barcode-Scanner

SKU:

1910GER-2

SCANNER ONLY. 2D Imager, Extended Range Focus, PDF417, RS-232/USB/Keyboard-Wedge/IBM interfaces. Color: Black. Does not include stand or Scan distance is from contact to 2.5'. Non-Cancelable/Non-Returnable.
Beschreibung
ico-plus ico-minus

The Honeywell Xenon 1900 Barcode Scanner is redefining efficiency in barcode scanning. With its sixth-generation area-imaging technology, it offers unmatched performance, capable of reading virtually any barcode with precision—from high-density linear codes to 2D barcodes directly from mobile device screens. Thanks to its AdaptusⓇ Imaging Technology 6.0 and a compact design for reduced operator fatigue, the Xenon 1900 ensures long-lasting durability and productivity, able to endure multiple drops while delivering reliable performance across a range of applications.


Key Features
  • Custom Sensor Optimized for Bar Code Scanning: Ensures enhanced scanning effectiveness and stability.
  • Multiple Focal Options: Offers high density, standard, and extended range to suit various needs.
  • Optional Disinfectant-Ready Housing: Built to resist harsh chemicals, increasing longevity.
  • Image Processing Software: Advanced editing features for high-quality digital image capture.
  • TotalFreedom™ 2.0: Supports multiple applications directly on the scanner.
  • Remote MasterMind™ Management Software: Simplifies scanner management from a single location.

Specifications
  • Dimensions: 104 mm x 71 mm x 160 mm (4.1" x 2.8" x 6.3")
  • Weight: 147 g (5.2 oz)
  • Input Voltage: 4 VDC to 5.5 VDC
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Drop Test: Withstands 50 drops from 6 ft
  • Environmental Sealing: IP41 rated
  • Warranty: 5 years
  • Scan Performance: Up to 610 cm/s (240 in/s) for optimal barcodes
  • Decode Capability: Reads 1D, stacked, 2D, and postal symbologies

Hauptmerkmale

  • Gehäusefarbe: Black

  • Konnektivität: Corded

  • Verbindung: Serial, USB

  • Scanner-Funktionalität: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

Linear:

  • China Post
  • Codabar (NW7)
  • Code 11
  • Code 128
  • Code 32
  • Code 39
  • Code 93
  • Code 2 of 5
  • EAN
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • GS1 DataBar (formerly RSS)
  • Telepen
  • Trioptic Code
  • UPC

Stacked:

  • Codablock F
  • GS1 Composite (formerly EAN/UCC)
  • MicroPDF417
  • PDF417

Matrix:

  • Aztec
  • Chinese Sensible Code (Han Xin Code)
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code

Postal:

  • Intelligent Mail Barcode (formerly 4-state customer barcode)
  • Australian Post
  • British Post
  • Canadian Post
  • ID-tag (UPU 4-state)
  • Japanese Post
  • Netherlands (KIX) Post
  • Planet Code
  • Postnet

OCR:

  • OCR-A
  • OCR-B
  • OCR MICR (E 13 B)
Light Source Laser
Maximum Scan Resolution 7.50 mil
Depth of Field
  • 3.7" - 8.0"@5mil - UPC
  • 1.0" - 20.7"@13mil - Code 39
  • 1.0" - 23.5"@20mil - PDF417
  • 2.8" - 9.2"@6.7mil - Data Matrix
  • 2.5" - 11.3"@10mil - QR
  • 0.7" - 19.0"@20mil - Code 39
Scan Pattern Linear
Interfaces/Ports
Host Interface
  • IBM 46XX
  • Serial
  • USB
  • Keyboard Wedge
Physical Characteristics
Form Factor Handheld
Product Color Black
Height 6.3"
Width 2.8"
Length 4.1"
Weight (Approximate) 5.20 oz
Miscellaneous
Additional Information

USB Cable separate
Environmentally Friendly Yes
Warranty
Limited Warranty 5 Year
Dokumente
ico-plus ico-minus
Produktdokument mod-xenon-honeywell-readers-datasheet.pdf 1910GER-2 Produktdokument mod-xenon-honeywell-readers-user-manual.pdf 1910GER-2 Produktdokument honeywell-xenon.pdf 1910GER-2 Produktdokument mod-xenon-honeywell-readers-datasheet.pdf MOD-XENON Produktdokument mod-xenon-honeywell-readers-user-manual.pdf MOD-XENON
