Extreme

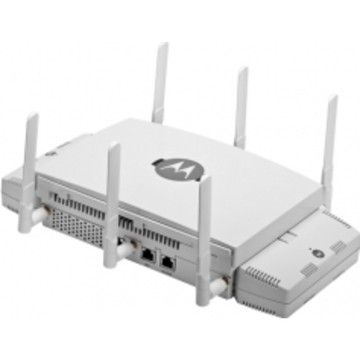

Extreme AP-8132-66040-US Schalter

SKU:

AP-8132-66040-US

Dual Radio 3X3:3 Access Access Point 802.11. MOTOROLA AP-8132 DUAL RADIO ACCESS POINT 3X3:3 REQUIRES ANTENNA AND POWER SUPPLY AP-8132
Beschreibung
ico-plus ico-minus
Motorola's AP 8132 Wireless Access Point revolutionizes the way you connect by combining innovative modular design with outstanding performance. Ideal for retail, hospitality, healthcare, and other industries, this 802.11n access point seamlessly integrates applications to enhance operational efficiency and empower mobile employees. The system supports voice, HD video, and data-intensive tasks, all while reducing installation costs through Power-over-Ethernet. With the ability to add modules for enhanced functionality, the AP 8132 is ready to adapt to your evolving business needs.

Key features:
  • 3-spatial stream 3X3 MIMO Access Point: Supports maximum throughput for high-demand applications.
  • Modular Design: Customize functionality with up to two snap-on modules.
  • Standard USB Interface: Enables a wide range of applications.
  • Load Balancing and Rate Scaling: Enhances reliability for mission-critical applications.
  • Dual-Band Capability: Features band-unlocked radios for optimal security and performance.


Specifications:
  • Dimensions: 9.0 in L x 6.0 in W x 1.625 in H (22.9 cm x 15.2 cm x 4.1 cm)
  • Weight: 3.2 lbs (1.45 kg)
  • Data Rates: Up to 450 Mbps per radio
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Power: 36-57VDC, with PoE support
  • Wireless Standards: IEEE 802.11a/b/g/n, and more
  • Security Features: Layer 2-7 stateful firewall, wireless IPS, and more

Hauptmerkmale

  • Verbindung: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Wireless LAN Standard IEEE 802.11n
ISM Band Yes
UNII Band Yes
ISM Minimum Frequency 2.41 GHz
ISM Maximum Frequency 2.47 GHz
UNII Minimum Frequency 5.18 GHz
UNII Maximum Frequency 5.83 GHz
Antenna Connector RP-SMA Connector
Wireless Transmission Speed 450 Mbit/s
Wireless Security
  • IEEE 802.1x
  • IEEE 802.11i
  • WPA
  • WPA2
  • PPPoE
Features
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports 2
Network (RJ-11) No
PoE (RJ-45) Port No
PoE PD Port Yes
VGA No
HDMI No
USB Yes
Powerline No
Management Port Yes
Management & Protocols
Management

DHCP

Power Description
Input Voltage 48 V DC
Physical Characteristics
Form Factor
  • Ceiling Mountable
  • Wall Mountable
Height 1.6"
Width 6"
Depth 9"
Weight (Approximate) 3.20 lb
Miscellaneous
Certifications & Standards

IEEE Standards:

  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.1x
  • IEEE 802.11i
  • IEEE 802.1p

Product Safety Certification:

  • UL / cUL 60950-1
  • IEC / EN60950-1
  • UL2043

Radio Approvals:

  • FCC
  • IC
  • CE
Environmentally Friendly Yes
Environmental Certification RoHS
Dokumente
ico-plus ico-minus
Produktdokument mod-ap8132-extreme-wireless-switches-datasheet.pdf AP-8132-66040-US Produktdokument mod-ap8132-extreme-wireless-switches-user-manual.pdf AP-8132-66040-US Produktdokument zebra-ap8132-access-points.pdf AP-8132-66040-US Produktdokument motorola-ap8132.pdf AP-8132-66040-US Produktdokument mod-ap8132-extreme-wireless-switches-datasheet.pdf MOD-AP8132 Produktdokument mod-ap8132-extreme-wireless-switches-user-manual.pdf MOD-AP8132
