Elo

Elo E683595 Verkaufsstellen-Systeme

SKU:

E683595

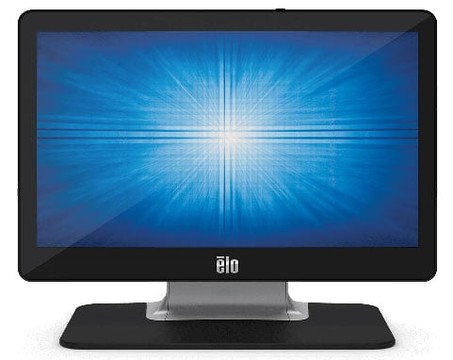

13.3" Touchscreen Monitor - Elo 1302L - Desktop LCD - 16:9 Aspect Ratio - Projected Capacitive 10-Touch - 1920 x 1080/Full HD - 16.7 million Colors - 270 nits Brightness (typical) - 800:1 Contrast Ratio (typical) - USB Touch Controller Interface - Anti-Glare - Zero-Bezel - No Stand - Black - 3-Year Warranty - Worldwide. Box Includes HDMI Cable - Touch USB Cable (Part# E710364) - Quick Install Guide - EEI Label - Power Brick - NA Power Cable - EU Power Cable - 3x Tie Wraps - 2x Screws for Cable Cover(s).
Beschreibung
ico-plus ico-minus
Elo 1302L Touchscreen Monitor is the epitome of interactive excellence, designed for commercial environments. This sleek 13-inch monitor features Elo's advanced TouchPro® PCAP technology, allowing for edge-to-edge glass that supports up to 10 simultaneous touches. Its compact design is perfect for POS systems, self-service kiosks, and customer-facing displays. With robust connectivity options, including USB Type-C, HDMI, and VGA, and dual built-in speakers, it's an all-in-one solution for your business needs. The Elo 1302L also boasts versatile mounting options and accessories tailored for efficient operations, all backed by a comprehensive three-year warranty.
Key Features
  • 13-inch LCD touchscreen with Edge-to-edge design
  • Integrated 10-touch support for enhanced interactivity
  • Commercial-grade durability and efficiency
  • USB Type-C for power, touch, and video connectivity
  • Multiple mounting options including stand, wall, and pole mounts
  • Compatible with finger, glove, and stylus inputs

Specifications
  • Color: Black
  • Diagonal Size: 13.3" / 337.82 mm
  • Active Touch Area: 11.57" x 6.5" / 293.76 mm x 165.24 mm
  • LCD Technology: Active matrix TFT LCD
  • Touch Technology: TouchPro PCAP
  • Aspect Ratio: 16:9
  • Native Resolution: 1920 x 1080
  • Brightness: 300 nits (Panel), 270 nits (with TouchPro PCAP)
  • Input Power: 12VDC +/-5%
  • Weight: 5.11 lbs. / 2.32 kg (with stand)
  • Operating Temperature: 0° C to 40° C
  • Warranty: 3 years

Hauptmerkmale

  • Berührung: Ja

  • Verbindung: USB

  • Bildschirmtyp: No

Technical Specifications
ico-plus ico-minus
Display & Graphics
Viewable Screen Size 13.30"
Screen Size Class 13"
Display Screen Type LCD
Touchscreen Yes
Multi-touch Screen Yes
Display Resolution 1920 x 1080
Response Time 25 ms
Aspect Ratio 16:9
Audio
Speakers Yes
Video
Scan Format 1080p
Standard Refresh Rate 60 Hz
Native Contrast Ratio 800:1
Brightness 300 Nit
Interfaces/Ports
USB Yes
VGA Yes
HDMI Yes
Physical Characteristics
Color Family Black
Product Color Black
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Mount Type
  • Pole Mount
  • Shelf Mount
  • Wall Mountable
Height 8.3"
Width 12.8"
Depth 1"
Weight (Approximate) 2.69 lb
Depth with Stand 5.91"
Miscellaneous
Country of Origin China
