Elo

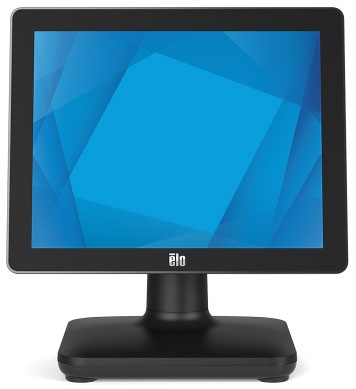

Elo E859791 Alles-in-Einem

SKU:

E859791

Elo TouchPro POS Connect: Elo 15-inch (4:3) All-in-One touchscreen POS terminal combining an integrated touchscreen and connectivity options in a compact enclosure for reliable retail and service workflows. Attributes: screen_size touch_technology aspect_ratio touchscreen_technology display_size display_resolution native_resolution resolution touch_points processor processor_model installed_memory installed_ram memory ram storage_capacity
Beschreibung
ico-plus ico-minus
Elo's 15-Inch EloPOS POS System combines modern design with robust functionality to enhance your point-of-sale experience. With a high-resolution 15-inch touchscreen display, this all-in-one system is powered by Intel's 8th generation processors, ensuring reliability and performance in any retail environment. The system is equipped with an integrated expansion hub for easy connectivity with peripherals such as payment terminals and barcode scanners. Designed for continuous public use, the EloPOS stands out for its durability and is backed by a standard three-year warranty, making it an excellent investment for businesses seeking a dependable POS solution.
Key Features:
  • 15-inch touchscreen display for intuitive user interaction
  • Intel 8th generation processors for fast and reliable performance
  • Integrated expansion hub connects easily to various peripherals
  • Durable design for continuous public use
  • 3-year warranty for peace of mind

Specifications:
  • Processor: Intel® Celeron® J4105 / i3-8100T / i5-8500T
  • Memory (RAM): 4GB (expandable to 32GB)
  • Storage: 128GB M.2 SSD (optional PCIe SSD available)
  • Operating System: Windows 10 / No OS options available
  • Display: 15.0" Anti-glare TFT LCD, 1024 x 768 resolution
  • Connectivity: USB 3.0, USB-C, Ethernet, Wireless (802.11 a/b/g/n/ac)
  • Warranty: Standard 3 years, extendable up to 5 years
  • Dimensions: 14.16" x 15.37" x 8.71"
  • Weight: 11.6 lbs (with stand)

Hauptmerkmale

  • Berührung: Ja

  • POS: Ja

  • Verbindung: Serial, USB, Bluetooth

  • Bildschirmtyp: Capacitve

  • Bildschirmauflösung: 1024 x 768

Technical Specifications
ico-plus ico-minus
Technical Information
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Form Factor All-in-One
Features Anti-glare
Processor & Chipset
Processor Manufacturer Intel
Processor Type Core i5
Maximum Turbo Speed 3.60 GHz
Processor Model i5-9500TE
Processor Cache 9 MB
vPro Technology Yes
Memory
Standard Memory 8 GB
Memory Technology DDR4 SDRAM
Maximum Memory Supported 32 GB
Storage
Solid State Drive Capacity 256 GB
Solid State Drive Interface M.2/SATA
Display & Graphics
Screen Size 15"
Active Display Size (Horizontal) 11.97"
Active Display Size (Vertical) 8.98"
Display Screen Type LED
Screen Mode HD
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Aspect Ratio 4:3
Contrast Ratio 800:1
Response Time 23 ms
Color Supported 262,000 Colors
Horizontal Viewing Angle 160°
Vertical Viewing Angle 160°
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics 630
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
USB Type-C Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Number of Micro USB 2.0 Ports 4
Number of USB 3.0 Ports 3
Number of USB Type C Ports 1
Built-in Devices
Number of Speakers 2
Speaker Power 2 W
Software
Operating System Windows 10 IoT Enterprise LTSC (64-bit)
Power Description
Power Source
  • AC Power
  • DC Power
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 11.68 lb
Miscellaneous
Durability Splash Proof
Energy Star Yes
Dokumente
ico-plus ico-minus
Produktdokument elopos-15.pdf E859791 Produktdokument mod-elopos-system-15-elo-all-in-one-datasheet.pdf MOD-ELOPOS-SYSTEM-15 Produktdokument mod-elopos-system-15-elo-all-in-one-user-manual.pdf MOD-ELOPOS-SYSTEM-15
