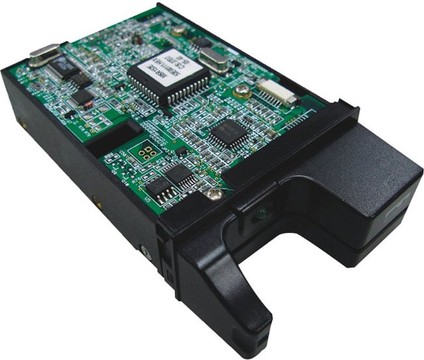

Custom MSR152 Kartenleser

The UIC MSR152 Credit Card Reader is a highly efficient manual insertion device designed for seamless magnetic card reading. Compact and lightweight, this reader is perfect for any retail environment, offering remarkable performance while conforming to the ISO7811 standard. With a powerful RS232 port and low power consumption, the MSR152 ensures that your transactions are speedy and reliable. The optional dual heads and bezels provide flexibility, making it adaptable to your specific business needs.

Key Features

• Port powered from RS232
• Programmable track data output
• Reads high or low coercivity magnetic stripes (300-4000 Oe)
• Small footprint and lightweight design
• Optional LED and dual heads
• Large coin drop area

Specifications

• Electrical:
  • Power Requirement: Port powered
  • Power Consumption: 10mA max.
  • Communication: RS232 (TTL optional)
• Mechanical:
  • Body Material: PC, UL94V-0
  • Dimensions: 107mm(L) x 60mm(W) x 26mm(H)
  • Weight: Approx. 65g
  • Card Handling Method: Manual insertion, bi-directional
• Environment:
  • Operating Temperature: -10 to 55°C, 10 to 85% humidity
  • Storage Temperature: -30 to 70°C, 10 to 90% humidity
• Performance:
  • Card Type: Magnetic cards as per ISO7811, AAMVA
  • Error Rate: < 0.5%
  • Head Life: 500K, 1M life optional
