Bogen

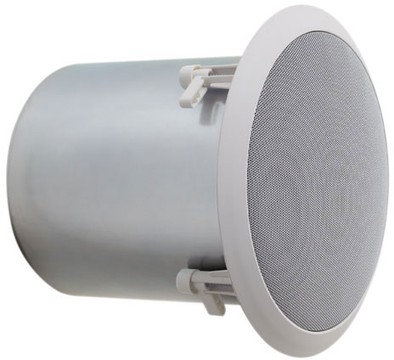

Bogen BOGEN-HFCS1 Computer Speakers
SKU:
MOD-BOGEN-HFCS1
The Bogen HFCS1 Speaker ceiling loudspeaker delivers superior sound in a variety of ceiling environments. The system can be easily installed in hard surfaced ceilings, suspended ceilings and new constructions. HFCS1 Speaker features 16-ohm input for non-transformer multi-speaker systems with wide dispersion coaxial driver for broad, even coverage. HFCS1 Speaker offers selectable power taps via front-mounted control with 32, 16, 8, 4, 2, and 1 options. The system comes with easy-to-install mounting system and snap-on connector for easy wiring. The accessories include a 10 ft. cable kit and tile bridge support ring.
Modell auswählen
Versand 24-36 Std.
Express-Versand für Bestellungen bis 14:30 Uhr.
Weitere Informationen
Secure payment with
Beschreibung
The Bogen HFCS1 High-Fidelity Ceiling Speaker is engineered for remarkable audio clarity and superb intelligibility. Ideal for various ceiling applications, including hard surfaces and suspended ceilings, this speaker features an easy installation process. With a low-distortion design and dual front exit ports, the HFCS1 delivers exceptional low-frequency response, making it perfect for both music and speech reinforcement in any setting. The front-mounted rotary switch allows users to select from multiple power outputs, ensuring optimal performance in any environment.
Key Features
- Wide-dispersion coaxial driver for broad, even coverage
- High power handling capability for foreground sound
- Select power taps (in watts): 32, 16, 8, 4, 2, and 1
- Durable polycarbonate cone for lasting performance
- Easy wiring with snap-on connector for convenient installation
- Paintable white textured finish to match decor
Specifications
- Frequency Response: 65 Hz to 19 kHz
- LF Driver: 6-1/2" PolyCone
- HF Driver: 20 mm (3/4") Polycarbonate Dome
- Sensitivity: 89 dBspl (Average 100 Hz - 10 kHz)
- Impedance Ratings: Low (16 ohms) / High (70V/100V)
- Max Power Input: 75W @ 16 ohms; 32W @ 70V/100V
- Baffle Material: Fire-rated (94VO) ABS
- Back Can Material: Heavy-Gauge Plated Steel
- Weight: 9 lb.
- Dimensions: 12-16" dia. x 12" D
- Included Accessories: Input Terminal Cover, Snap-Lock Input Connector
- Optional Accessories: Tile Bridge Support Ring (TBCR), 10-foot Cable Kit (CK10)
Dokumente
hfcs1s.pdf MOD-BOGEN-HFCS1
