Axis

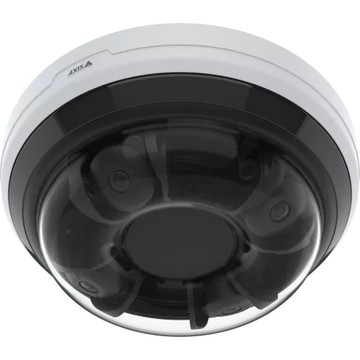

Axis 02898-001 Security Camera

SKU:

02898-001

Security Camera, Axis P3748-PLVE, AXIS P3748-PLVE 8 Megapixel Outdoor 4K Network Camera, Color, Dome, White, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, H.264, H.265, Zipstream, H.264B, H.264H, H.264M, H.265B, H.265H, - 3840 x 2160, 3.18 mm- 7.42 mm Varifocal Lens, 2.3x Optical, 15 fps, RGB CMOS, Gigabit Ethernet, Ceiling Mount, Bracket Mount, Junction Box Mount, IK10, IP66, Audio Support
Beschreibung
ico-plus ico-minus
The AXIS P3748-PLVE Panoramic Security Camera is a state-of-the-art surveillance solution designed for comprehensive monitoring. Offering **four 4K channels** at up to **15 fps**, this multidirectional camera ensures detailed imagery with **360° IR illumination**. The **PTRZ functionality** allows easy installation and configuration from a remote location. Not only does it provide advanced **AI analytics** on the edge for enhanced object detection, but its integrated **Axis Edge Vault** also guarantees cybersecurity, protecting your video feed and device integrity against potential threats.
Key features:
  • Four 4K MP channels with 12.5/15 fps
  • 360° IR illumination with individually controllable LEDs
  • Remote pan, tilt, roll, zoom (PTRZ) for flexible viewing angles
  • Integrated cybersecurity with Axis Edge Vault
  • Advanced analytics for precise monitoring

Specifications:
  • Camera Type: 4x1/2.9" progressive scan RGB CMOS
  • Video Compression: H.264, H.265, Motion JPEG
  • Resolution: Up to 4x 3840x2160 (4K)
  • Power: PoE (IEEE 802.3af/at), Typical: 10.9 W
  • Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
  • Weight: 3 kg (6.6 lbs)
  • Dimensions: 220 mm x 141 mm x 114 mm (8.66 x 5.57 x 4.5 in)
Technical Specifications
ico-plus ico-minus
Technical Information
Recording Formats 4K
HD Recording Yes
Camera Iris Fixed
AI-powered Yes
Infrared (IR) Cut-off Filter Yes
Languages Support
  • English
  • German
  • French
  • Spanish
  • Italian
  • Russian
  • Simplified Chinese
  • Japanese
  • Korean
  • Portuguese
  • Polish
  • Traditional Chinese
  • Dutch
  • Czech
  • Swedish
  • Finnish
  • Turkish
  • Thai
  • Vietnamese
Wide Dynamic Range Detail 120 dB
Display & Graphics
Image Sensor Type RGB CMOS
Image Sensor Size 1/2.9"
Color Supported Color
Field of View 54.5°-23°
Effective Camera Resolution 8 Megapixel
Number of Sensors 4
Video
Video Formats
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC) Main Profile
  • Motion JPEG
  • H.264
  • H.265
  • Zipstream
  • H.264B
  • H.264H
  • H.264M
  • H.265B
  • H.265H
  • H.265M
Maximum Video Resolution 3840 x 2160
Maximum Frame Rate 15 fps
Audio
Audio Support Yes
Lens
Lens Type Varifocal
Minimum Focal Length 3.18 mm
Maximum Focal Length 7.42 mm
Lens Included Yes
Minimum Aperture f/2.7
Maximum Aperture f/1.6
Optical Zoom 2.3x
Exposure
Shortest Shutter Speed 1/14000 Second
Longest Shutter Speed 1/2 Second
Network & Communication
Connectivity Technology Wired
Ethernet Technology Gigabit Ethernet
Protocols
  • IPv4
  • IPv6 USGv6
  • ICMPv4/ICMPv6
  • HTTP
  • HTTPS
  • HTTP/2
  • TLS
  • FTP
  • SFTP
  • CIFS/SMB
  • SMTP
  • mDNS (Bonjour)
  • UPnP
  • SNMPv1/v2c/v3 (MIB2)
  • DNS/DNSv6
  • DDNS
  • NTP
  • NTS
  • RSTP
  • RTP
  • SRTP/RTSPS
  • TCP
  • UDP
  • IGMPv1/v2/v3
  • RTCP
  • ICMP
  • DHCPv4/v6
  • ARP
  • SSH
  • LLDP
  • CDP
  • MQTT v3.1.1
  • UDP/TCP/TLS
  • ZeroConf
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Maximum Power Consumption 23.60 W
Power Source Type PoE
Physical Characteristics
Mount Type
  • Ceiling Mount
  • Bracket Mount
  • Junction Box Mount
Form Factor Dome
Color Family White
Product Color White
Product Material
  • Polycarbonate
  • Aluminum
  • Plastic
Weight (Approximate) 6.61 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 122°F (50°C)
Minimum Storage Temperature -40°F (-40°C)
Maximum Storage Temperature 149°F (65°C)
Minimum Operating Humidity (Condensing) 10%
Maximum Operating Humidity (Condensing) 100%
Minimum Storage Humidity (Non-condensing) 5%
Maximum Storage Humidity (Non-condensing) 95%
Miscellaneous
Features
  • Day/Night
  • Wide Dynamic Range
  • White Balance
  • Mirror
  • Privacy Masking
  • Built-in Speaker
  • 2D Noise Reduction
  • 3D Noise Reduction
  • Motion Detection
  • Tampering Alarm
  • Human Detection
  • Vehicle Detection
Indoor/Outdoor Outdoor
Package Contents
  • P3748-PLVE Panoramic Camera
  • Installation Guide
  • Connector Guard
  • Cable Gasket
  • Mounting Plate
  • Dome Casing
Impact Protection Rating IK10
Ingress Protection Rating IP66
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 5 Year
Dokumente
ico-plus ico-minus
Produktdokument P3748-PLVE.pdf 02898-001 Produktdokument P3748-PLVE.pdf MOD-AXIS-P3748-PLVE
