Honeywell

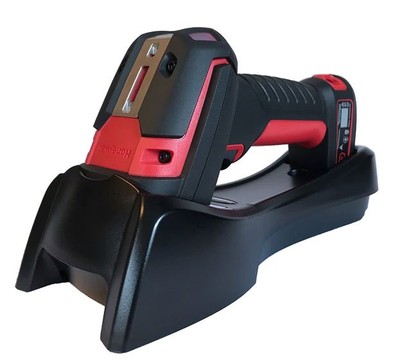

Honeywell Granit XP 1991iXR Barcode Scanner Wireless, Ultra-Rugged, 1D/2D, RS-232, Bluetooth Class 1, Red

SKU:

1991IXR-3SER-5-N

Honeywell Granit 1991i Industrial Rugged Barcode Scanner — Honeywell Granit XP Rover Scanner Key attributes: access_control connectivity focus_type pos scanner_range scanner_type supported_symbologies battery_type bluetooth_class form_factor host_interface image_sensor_resolution maximum_scan_range maximum_scanning_distance product_family range_type ruggedness scan_pattern scans_per_charge wireless ingress_protection_rating
Description
ico-plus ico-minus

The Honeywell Granit XP 1991iXR Barcode Scanner is built for extreme performance in the most demanding industrial environments. Featuring industry-leading ruggedness, this wireless scanner is engineered to withstand 3-meter drops and offers remarkable durability with over 7,000 tumbles. Its advanced Honeywell Flex Range™ technology allows for superior near-field and long-range scanning capabilities, making it ideal for various applications in warehouses and distribution centers. The Granit XP 1991iXR is designed to maximize productivity by accurately reading damaged and low-quality barcodes with ease, ensuring efficient workflows.


Key Features
  • Ultra-Rugged Design: Survives drops from 3 m (10 ft) and 7,000 tumbles.
  • Honeywell Flex Range™ Technology: Scans UPC barcodes from 1.5 m (5 ft) and 100 mil codes from 10 m (33 ft).
  • IP67 Sealing: Dust-tight and protected against water immersion.
  • High-Performance Scanning: Reads damaged and low-quality barcodes easily.
  • Long Battery Life: Up to 14 hours of operation with a 2450 mAh battery.

Specifications
  • Dimensions: 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in)
  • Weight: 405 g (14.3 oz)
  • Wireless: Bluetooth® v4.2, Class 1: Up to 100 m (330 ft)
  • Operating Temperature: -30°C to 50°C (-22°F to 122°F)
  • Decode Capabilities: Reads 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies
  • Battery: 2450 mAh Li-ion battery, up to 50,000 scans per charge
  • Durability: IP67 and IP65 environmental sealing
  • Warranty: Three-year factory warranty (scanner), one-year warranty on battery pack

Main Features

  • Rugged: Industrial

  • POS: Yes

  • IP Rating: IP67

  • Range: FlexRange

  • Connectivity: Cordless

  • Connection: Serial, Bluetooth, RS232

  • Scanner Capability: 1D, Imager, 2D

  • Battery Features: Smart

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
Image Sensor Type Imager
Scanning Distance 33 ft
Features
  • Vibration
  • Beep
  • Notification LED
Cable Type Included Serial
Field of View (Horizontal) 40°
Field of View (Vertical) 30°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 45°
Reading Angle (Roll) -360°
Motion Tolerance 177 in/s
Maximum Ambient Light 100000 lux
Drop Specification 10 ft


Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 100 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 800
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface Serial
Power Description
Maximum Operating Power Consumption 5 W
Input Current 1 A
Standby Current 120 mA
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 2450 mAh
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Red
Product Color Red
Height 3.9"
Width 3"
Length 7.6"
Weight (Approximate) 14.29 oz
Miscellaneous
Package Contents
  • Granit XP 1991iXR Wireless Ultra-Rugged Area-Imaging Scanner
  • 1 x Serial Cable - 10 ft
  • Desktop Base
Ingress Protection (IP) Rating
  • IP67
  • IP65
  • IP51
Application/Usage
  • Warehouse
  • Industrial
Warranty
Limited Warranty 3 Year
Additional Warranty Information

Battery Pack: One-year factory warranty
Documents
ico-plus ico-minus
Product document 1991ixr.pdf MOD-GRANIT-1991I Product document 1991isr.pdf MOD-GRANIT-1991I Product document granit-xp-1991ixlr-2023.pdf MOD-GRANIT-1991I
