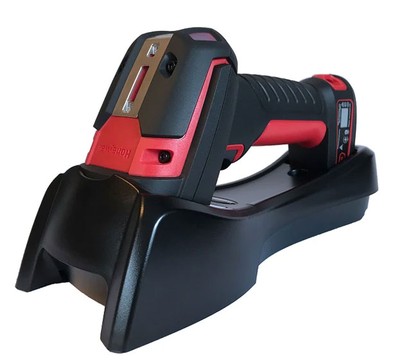

Honeywell Granit XP 1991iXR Barcode Scanner Ultra Rugged, Handheld, 2D Imager, FlexRange XR, Bluetooth 4.2, USB Kit

The Honeywell Granit 1991i is an industrial-grade handheld barcode scanner family engineered for harsh warehouse, distribution, manufacturing and field environments. Available in multiple range options (Standard Range, FlexRange/XR and XLR Ultra‑Long Range) and as cordless kits, the platform combines ultra‑rugged construction, sealed enclosures and advanced imaging to capture 1D, 2D and PDF417 barcodes — including damaged or low‑quality labels. Flexible host interfaces (Bluetooth, RS‑232, USB) and rechargeable smart battery options support mobile workflows and system integration, while high durability specifications (IP67, multi‑meter drop resistance, tumble ratings) reduce downtime and total cost of ownership in demanding operations.

Key Features

• Ultra‑rugged construction: Industrial‑grade design with IP67 sealing, deep‑recessed scratch‑resistant window and high drop/tumble ratings to withstand daily abuse.
• Flexible scanning ranges: Models available for Standard Range (SR), FlexRange/XR and XLR ultra‑long‑range capture to cover near‑field through rack/top‑rack applications.
• Broad symbology support: Reliable decoding of 1D, 2D and PDF417 codes (plus Digimarc/DOT/Postal on select variants) to handle diverse labeling standards.
• Wireless mobility and integration: Bluetooth connectivity (including Bluetooth 4.2 and Class 1 variants) with optional RS‑232 and USB host interfaces for versatile deployments.
• Long battery life & smart power: Rechargeable smart battery options with extended capacity and multi‑hour runtime for continuous shift operation.
• High‑resolution imaging: Area imagers with high sensor resolution and enhanced decoding algorithms for fast reads of damaged or low‑contrast labels.

Specifications

• Brand: Honeywell
• Product Family / Model: Granit 1991i
• Form Factor: Handheld / Cordless
• Scanner Type: Imager (area imager)
• Supported Symbologies: 1D, 2D, PDF417 (selected variants: Digimarc, DOT, Postal, OCR)
• Range Types: Standard Range (SR), FlexRange / XR, XLR (Ultra‑Long Range)
• Maximum Scanning Distance: Up to 33 ft (varies by variant)
• Maximum Range for 100 mil Codes: Up to 24 m (XLR) / 10 m (FlexRange variants)
• Image Sensor Resolution: 1280 x 800 px
• Wireless Connectivity: Bluetooth (including Bluetooth 4.2 and Bluetooth Class 1)
• Host Interfaces: RS‑232, USB (varies by SKU)
• Battery: Smart Battery (BAT‑SCN05) / Lithium‑ion options
• Battery Capacity: 2450 mAh (selected variant)
• Maximum Battery Run Time: Up to 14 Hour (selected variant)
• Ingress Protection Rating: IP67 (selected variants)
• Drop Resistance / Maximum Drop Specification: 3 m
• Tumble Specification: 7000 tumbles
• Tumble Test Height: 1 m
• Operating Temperature Range: -20 to 50 °C (-4 to 122 °F for selected variants)
• Operating Humidity: 0 - 95% (non‑condensing)
• Minimum Print Contrast (PCS): 20%
• Motion Tolerance: 177 in/s (selected variant)
• Power Consumption (Operational): 5 W
• ESD Protection (Air / Contact): 20 kV / 8 kV
• Dimensions (H x W x D): 3.9 x 3 x 7.6 in (typical)
• Weight / Batteries Installed: Batteries installed: 1 (varies by kit)
• Assembly Location: Mexico (selected variant)
