Honeywell

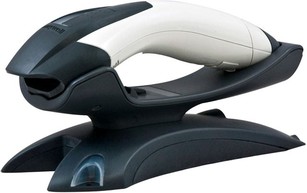

Honeywell Voyager 1202G Wireless Barcode Scanner Bluetooth Class 2, 12 hours, 33 ft, IP42, 1.65 lbs

SKU:

1202G-2USB-5-N

Honeywell’s Voyager 1202g wireless laser scanner delivers fast, accurate 1D barcode reading with the freedom of Bluetooth Class 2 mobility. Built on the proven Voyager platform, it offers a 33-foot range from the base, long battery life, automatic interface detection, and a paging system for easy scanner location.
Description
ico-plus ico-minus

The Honeywell Voyager 1202g is a professional handheld barcode scanner family engineered for high-volume retail, POS, light industrial and logistics workflows that require fast, reliable 1D data capture with wireless flexibility. Available in cordless Bluetooth configurations and kit or USB-ready variants, the 1202g series combines a single-line laser scan engine, precise CodeGate aiming and rugged IP42 protection to minimise downtime on crowded sales floors, service counters and back‑office operations. Deployments may choose between a field‑replaceable Li‑Ion battery for extended shift life or a rapid‑charge, battery‑free supercapacitor option for minimal maintenance, while broad host-interface support ensures smooth integration with existing POS and inventory systems.

Key Features

  • Bluetooth cordless freedom: Bluetooth Class 2 (v2.1+EDR) connectivity with a typical wireless range of 10 m (33 ft) enables untethered scanning across workstations and sales floors.
  • Fast, reliable 1D scanning: Single‑line laser engine delivers up to 100 scans per second and supports aggressive 1D and GS1 DataBar decoding for consistent throughput.
  • Flexible power options: Choose field‑replaceable Li‑Ion batteries for extended runtime (standard 1800 mAh, ~12 hours) or supercapacitor technology for ultra‑fast recharge and reduced maintenance.
  • Multi‑interface compatibility: Native support for USB, Keyboard Wedge (KBW), RS232 and additional host interfaces simplifies integration with POS, PC and legacy systems.
  • Durable, service‑ready design: IP42 environmental sealing, ergonomic form factor and serviceable battery/parts ensure dependable operation in retail, healthcare and light industrial environments.

Specifications

  • Depth: 66 mm
  • Width: 180 mm
  • Height: 92 mm
  • Weight: 160–180 g (model dependent)
  • Ingress Protection Rating: IP42
  • Scan Rate / Speed: 100 scans/s (100 lines/sec)
  • Scan Pattern: Single scan line
  • Supported Symbology: 1D, GS1 DataBar
  • Interfaces / Host Connectivity: USB, KBW (Keyboard Wedge), RS232, IBM 46xx (RS485) (varies by SKU)
  • Battery Capacity: 1800 mAh (Li‑Ion, where applicable)
  • Battery Life: 12 hours (typical, battery variants)
  • Scans per Charge: Up to 45,000 (battery variants)
  • Bluetooth Version / Radio: Bluetooth v2.1+EDR, Class 2; 2.4–2.5 GHz, Adaptive Frequency Hopping
  • Wireless Range (typical): 10 m (33 ft); line‑of‑sight ranges up to 100 ft (30 m) reported for some SKUs
  • Light Levels (direct sunlight): 0 – 70,000 lx
  • Operating Temperature: 0 to 50 °C (scanner variants) / 5 to 40 °C (other variants)
  • Storage Temperature: -20 to 60 °C (some SKUs) / -5 to 35 °C (others)
  • Operating Relative Humidity: 0 to 95% RH non‑condensing
  • Pitch Reading Angle: -60 to 60°
  • Print Contrast Minimum: 10%

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: Black

  • IP Rating: IP42

  • Range: Long Range

  • Connectivity: Cordless

  • Connection: RS232, Ethernet, Bluetooth, USB

  • Scanner Capability: 1D

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Barcode Symbology Supported
  • Reads standard 1D and GS1 DataBar symbologies
Light Source Laser
Image Sensor Type Linear
Scan Rate 100 scan/s
Depth of Field
  • 27 mm - 151 mm (1.1" - 5.9") @ 5 mil (Code 39)
  • 16 mm - 216 mm (0.6" - 8.5") @ 7.5 mil (Code 39)
  • 0 mm - 277 mm (0" - 10.9") @ 10.4 mil (Code 39)
  • 0 mm - 311 mm (0" - 12.2") @ 13 mil (UPC-A)
  • 0 mm - 367 mm (0" - 14.4") @ 20 mil (Code 39)
Scan Pattern Single Line
Scanner Range Short Range
Scanning Distance 14.40"
Cable Type Included USB
Stand Included Yes
Field of View (Horizontal) 30°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Maximum Ambient Light 70000 lux
Drop Specification
  • Designed to withstand 30 drops to concrete from 1.5 m
Minimum Print Contrast 10%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface
  • Serial
  • USB
  • Keyboard Wedge
Power Description
Maximum Operating Power Consumption 700 mW
Standby Current 70 mA
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Black
Product Color Black
Height 3.8"
Width 7.1"
Length 2.6"
Weight (Approximate) 4.41 oz
Miscellaneous
Package Contents
  • 1 x Voyager 1200g Single-Line Laser Scanner
  • charge & communication base
  • USB Type A 3m straight cable
  • Documentation
  • Goose Neck Stand
Ingress Protection (IP) Rating IP42
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 5 Year
Documents
ico-plus ico-minus
Product document voyager-1202g.pdf 1202G-2USB-5-N Product document voyager-1202g.pdf MOD-1202G Product document 1202g-bf.pdf MOD-1202G
FAQs
ico-plus ico-minus
What barcode symbologies does the Honeywell Voyager 1202g support?
The Voyager 1202g reads 1D barcodes and GS1 DataBar symbologies using a single-line laser scan engine, delivering up to 100 scans per second for consistent throughput on damaged or smudged codes.
What is the wireless range of the Honeywell Voyager 1202g, and which Bluetooth version does it use?
It uses Bluetooth v2.1+EDR (Class 2) with Adaptive Frequency Hopping at 2.4–2.5 GHz, providing a typical wireless range of 10 m (33 ft).
What host interfaces does the Honeywell Voyager 1202g support for POS and legacy system integration?
The Voyager 1202g supports USB, Keyboard Wedge (KBW), RS232, and IBM 46xx (RS485) host interfaces, enabling connection to modern POS systems as well as legacy PC and terminal environments.
What power options are available for the Honeywell Voyager 1202g, and how long does the battery last?
The 1202g is available with a field-replaceable 1800 mAh Li-Ion battery providing approximately 12 hours of typical runtime and up to 45,000 scans per charge, or with a supercapacitor option for ultra-fast recharge and reduced maintenance.
How rugged is the Honeywell Voyager 1202g for retail and light industrial use?
The Voyager 1202g carries an IP42 ingress protection rating and is designed for commercial-grade durability, with an ergonomic form factor and serviceable battery and parts suited to retail, healthcare, and light industrial environments.
What are the operating environment limits for the Honeywell Voyager 1202g?
The scanner operates across a relative humidity range of 0 to 95% RH non-condensing and functions in ambient light up to 70,000 lx in direct sunlight, with a pitch reading angle of -60 to 60 degrees.
