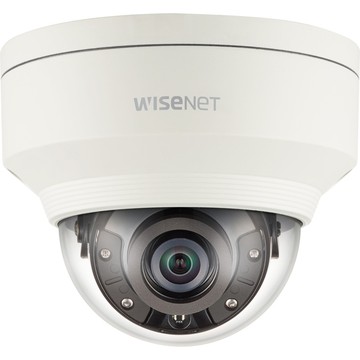

Hanwha Vision XNV-8020R Security Camera

SKU:

XNV-8020R

Security Cameras, Hanwha Techwin America XNV-8020R, Wisenet, 5 Megapixel Outdoor Network Camera, Color, Dome, 98.43 ft Infrared Night Vision, MJPEG, H.264, H.265, MPEG-4 AVC, 2560 x 1920 Fixed Lens, CMOS, Wall Mount, Parapet Mount, Pole Mount, Corner Mount, IP67
Description
ico-plus ico-minus
Parts and products from Hanwha Vision.
Technical Specifications
ico-plus ico-minus
Technical Information
HD Recording Yes
Night Vision Yes
Night Vision Distance 98.43 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View H : 97.5 ? / V : 71.9 ? / D : 126.2
Effective Camera Resolution 5 Megapixel
Video
Video Formats
  • MJPEG
  • H.264
  • H.265
  • MPEG-4 AVC
Maximum Video Resolution 2560 x 1920
Maximum Frame Rate 30 fps
Lens
Lens Type Fixed
Maximum Focal Length 3.70 mm
Lens Included Yes
Maximum Aperture f/1.6
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 2 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 12 V DC
Power Source Type
  • DC
  • PoE
Physical Characteristics
Mount Type
  • Wall Mount
  • Parapet Mount
  • Pole Mount
  • Corner Mount
Form Factor Dome
Durability Vandal Resistant
Color Family White
Product Color Ivory
Height 3.8"
Width 4.7"
Diameter 4.7"
Weight (Approximate) 1.36 lb
Miscellaneous
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating
  • IP66
  • IP67
NDAA Compliant Yes
Warranty
Limited Warranty 3 Year
