Ergotron

Ergotron SV42-6301-1 Computers

SKU:

SV42-6301-1

Mobile Carts, Ergotron, StyleView Cart with LCD Pivot, SLA Powered, North America
Description
ico-plus ico-minus

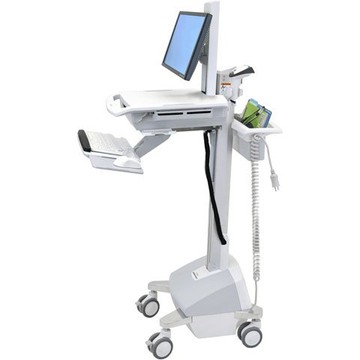

The Ergotron StyleView SV42 Medical Mobile Cart is an innovative solution designed to enhance the workflow and well-being of caregivers. With an electric lift that offers a remarkable 20" (51 cm) of height adjustment, this ergonomic cart is ideal for both sitting and standing users. Its lightweight LiFe battery ensures easy mobility and ultrafast recharging, reducing downtime. For added safety, this medical cart complies with rigorous standards, making it a reliable choice for healthcare environments. The spacious worksurface and integrated keyboard features contribute to comfort and efficiency, making this cart a trusted partner for all caregiving tasks.


Key Features:
  • Electric Lift provides a full 20" (51 cm) of sit-to-stand height adjustment.
  • LiFe Battery Power allows for easy mobility and quick recharging.
  • Spacious Worksurface: 22.4"W x 19.75"D for ample workspace.
  • Back-Tilt Keyboard Tray with wrist rest for enhanced comfort.
  • Durable, Easy-to-Clean Exterior made from high-grade aluminum and plastics.
  • Dependable Safety with certification to UL/EN/IEC 60601-1 standards.

Specifications:
  • Model: StyleView SV42
  • Height Adjustment: 20" (51 cm)
  • Maximum LCD Height Adjustment: 25" (63 cm)
  • Supports Displays: Up to 24" (60.9 cm)
  • Weight Capacity: ≤139 lbs (17.7 kg)
  • Warranty: 3 years
  • Dimensions (Wheel-to-Wheel Base): 15.5"x 17" (39.4 x 43.2 cm)
  • Front Casters: 2 are lockable
Technical Specifications
ico-plus ico-minus
Product Information
Maximum Load Capacity 35 lb
Number of Casters 4
Application/Usage
  • Healthcare
  • Notebook
  • Tablet PC
Features
  • Antimicrobial
  • Heavy Duty
  • Lockable
  • Cable Management
  • Adjustable Height
Battery Information
Number of Batteries Supported 2
Battery Chemistry Sealed Lead Acid (SLA)
Battery Voltage 12 V DC
Power Description
Input Voltage 120 V AC
Power Source AC (Alternating Current)
Physical Characteristics
Product Color
  • White
  • Gray
  • Polished Aluminum
Product Material
  • Aluminum
  • Plastic
  • Zinc Plated Steel
Height 50.5"
Width 18.3"
Weight (Approximate) 129 lb
Miscellaneous
Package Contents
  • StyleView EMR Cart with LCD Pivot, SLA Powered
  • LCD Pivot
  • Worksurface
  • Secure CPU Compartment
  • Four-Port USB Hub
  • Scanner Holder Bracket
  • Mouse Holder
  • Wrist Rest
  • Back-Tilt Keyboard Tray
  • Left/Right Mouse Tray
  • Rear Handle
  • Storage Basket
  • Cable Storage
  • 4 x Caster
  • 2 x Battery 66 Ah Power System
  • 10 Foot Coiled Cord
  • 3 x AC Outlet
  • Power System User Interface
  • StyleLink Software
Additional Information
  • LCD: 22"
  • Lift: 25"
  • Tilt: 25°
  • Pan: 24°
  • Rotation: 90° P/L
  • NEMA 5-15P Hospital Grade Grounded Plug
  • Surfaces are treated with antimicrobial for product protection
  • Keyboard pans fully side-to-side for closer access while interacting with clients
  • Large smooth worksurface; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
  • Portrait screen orientation may be incompatible with widescreen displays > 19"
  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
  • LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits

VESA:

  • 75 x 75mm
  • 100 x 100mm
Assembly Required No
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • REACH
  • WEEE
Country of Origin United States
Warranty
Limited Warranty 5 Year
