Ergotron

Ergotron SV42-6202-1 Computers

SKU:

SV42-6202-1

Mobile Carts, Ergotron, StyleView Cart with LCD Arm, LiFe Powered, North America
Description
ico-plus ico-minus

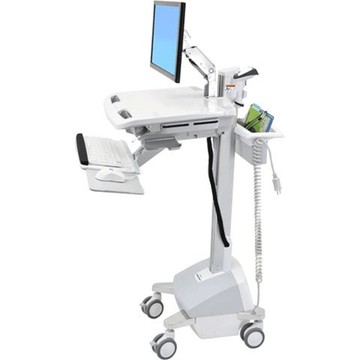

The Ergotron StyleView SV42 Medical Mobile Cart is an innovative solution designed to enhance the workflow and well-being of caregivers. With an electric lift that offers a remarkable 20" (51 cm) of height adjustment, this ergonomic cart is ideal for both sitting and standing users. Its lightweight LiFe battery ensures easy mobility and ultrafast recharging, reducing downtime. For added safety, this medical cart complies with rigorous standards, making it a reliable choice for healthcare environments. The spacious worksurface and integrated keyboard features contribute to comfort and efficiency, making this cart a trusted partner for all caregiving tasks.


Key Features:
  • Electric Lift provides a full 20" (51 cm) of sit-to-stand height adjustment.
  • LiFe Battery Power allows for easy mobility and quick recharging.
  • Spacious Worksurface: 22.4"W x 19.75"D for ample workspace.
  • Back-Tilt Keyboard Tray with wrist rest for enhanced comfort.
  • Durable, Easy-to-Clean Exterior made from high-grade aluminum and plastics.
  • Dependable Safety with certification to UL/EN/IEC 60601-1 standards.

Specifications:
  • Model: StyleView SV42
  • Height Adjustment: 20" (51 cm)
  • Maximum LCD Height Adjustment: 25" (63 cm)
  • Supports Displays: Up to 24" (60.9 cm)
  • Weight Capacity: ≤139 lbs (17.7 kg)
  • Warranty: 3 years
  • Dimensions (Wheel-to-Wheel Base): 15.5"x 17" (39.4 x 43.2 cm)
  • Front Casters: 2 are lockable
Technical Specifications
ico-plus ico-minus
Product Information
Maximum Load Capacity 31 lb
Number of Casters 4
Application/Usage
  • Healthcare
  • Tablet PC
  • Notebook
Features
  • Locking Casters
  • Antimicrobial
  • Lockable
  • Cable Management
  • Adjustable Height
  • Electrical Outlet
  • Durable
  • Keyboard Tray
Battery Information
Number of Batteries Supported 1
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Battery Voltage 12 V DC
Power Description
Input Voltage 110 V AC
Power Source AC (Alternating Current)
Physical Characteristics
Product Color
  • White
  • Gray
  • Polished Aluminum
Product Material
  • Aluminum
  • Plastic
  • Zinc Plated Steel
Height 50.5"
Width 18.3"
Weight (Approximate) 97 lb
Miscellaneous
Package Contents
  • StyleView EMR Cart with LCD Arm, LiFe Powered
  • LCD Arm
  • Worksurface
  • Secure CPU Compartment
  • Four-Port USB Hub
  • Scanner Holder Bracket
  • Mouse Holder
  • Wrist Rest
  • Back-Tilt Keyboard Tray
  • Left/Right Mouse Tray
  • Rear Handle
  • Storage Basket
  • Cable Storage
  • 4 x Casters (Two Locking)
  • Single-Battery 40 Ah LiFe Power System
  • 10-Foot Coiled Cord
  • 3 x AC Outlets
  • Power System User Interface
  • StyleLink Software
Additional Information
  • LCD: 22"
  • Lift: 27"
  • Tilt: 65°
  • Pan: 180°
  • Rotation: 360°
  • NEMA 5-15P Hospital Grade Grounded Plug
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Portrait screen orientation may be incompatible with widescreen displays > 19"
  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17"
  • LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
  • Surfaces are treated with antimicrobial for product protection
  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry-avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
  • LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC
  • For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A
  • LCD and worksurface adjust 20" in tandem; LCD Arm adjusts 7" independently; maximum LCD height adjustment= 27"

VESA:

  • 75 x 75mm
  • 100 x 100mm
Assembly Required No
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • REACH
  • WEEE
Country of Origin United States
Warranty
Limited Warranty 5 Year
