Elo

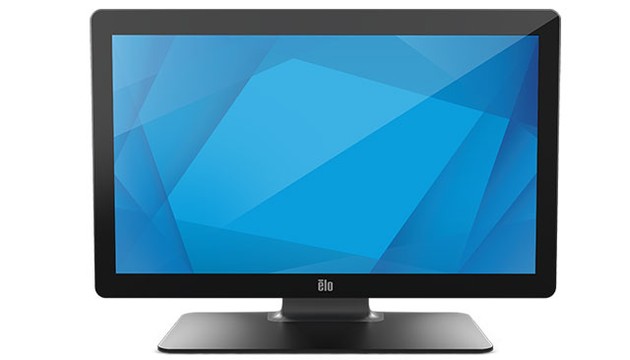

Elo 2203LM, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black

SKU:

E658788

TFT screen, 16:9, 54.6cm (21.5''), Projected Capacitive, multi touch (10 points), resolution: 1920x1080 pixels, VESA mount (100x100 mm), 14ms, brightness: 225cd, viewing angle: 178/178°(H/V), contrast: 1000:1, USB (Host), VGA, HDMI, touch interface: USB, protection class: IP54, incl.: cable (USB, VGA, Audio, HDMI), power supply unit, power cable (EU, US), stand, colour: black
Description
ico-plus ico-minus
Elo's 55-inch touchscreen display, the 5503L, transforms any space into an engaging interactive environment. Perfectly suited for various applications—from menus to brand experiences—this commercial-grade display is built for durability and continual use. With the innovative Elo Touch Pro® PCAP technology, it supports up to **40 simultaneous touches**, ensuring a highly responsive experience. Integrated with versatile options for mounting and equipped with advanced features like touch thru capability, this display effortlessly blends functionality with aesthetics.
Key features:
  • 55-inch Full HD display with vibrant colors and sharp details.
  • Up to 40 touches for seamless interaction.
  • Commercial grade design for continuous use in demanding environments.
  • 3-year warranty with optional extended coverage.
  • Flexible mounting options in portrait, landscape, or tabletop orientations.
  • Built-in Ambient Light Sensor for automatic panel color adjustments.

Specifications:
  • Model: 5503L
  • Bezel Color: Black
  • Display: 55" / 1397 mm diagonal, active matrix TFT LCD
  • Native Resolution: Full HD 1920 x 1080 @ 60Hz
  • Touch Technology: TouchPro® PCAP and Infrared
  • Brightness (typical): 450 nits
  • Contrast Ratio: 4000:1
  • Weight: Unpackaged 81.76 lbs / 37.09 Kg
  • Maximum Operating Time: 24 hours/day
  • Warranty: 3 years standard, optional extended warranties available

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 22"
Viewable Screen Size 21.5"
Screen Mode Full HD
Response Time 14 ms Typical
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type
  • Arm-mountable
  • Wall Mountable
  • Cart Mountable
Backlight Technology LED
Features
  • Privacy Filter
  • Ergonomic Design
  • Anti-glare
  • On-screen Display (OSD)
  • LED Indicator
  • OSD/Power Lock
Ingress Protection (IP) Rating IP54
Impact Protection (IK) Rating IK06
Video
Maximum Resolution 1920 x 1080
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 250 Nit
Audio
Speakers Yes
Number of Speakers 2
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
Number of USB Ports 4
Power Description
Operating Power Consumption 16.78 W
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Product Color Black
Height with Stand 15.11"
Width with Stand 20.74"
Depth with Stand 7.61"
Weight (Approximate) 10.58 lb
Weight with Stand (Approximate) 14.88 lb
Miscellaneous
Package Contents
  • 2203LM 22" Medical Grade Touchscreen Monitor
  • Stand
  • Quick Install Guide
  • 3 x Tie Wraps
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick (E323104)
  • Power Cable
  • EEI Label
  • DICOM Calibration Sheet
  • 2 x Cable Cover Screws
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • China RoHS
  • WEEE
  • REACH
Country of Origin China
Warranty
Limited Warranty 3 Year
