Elo

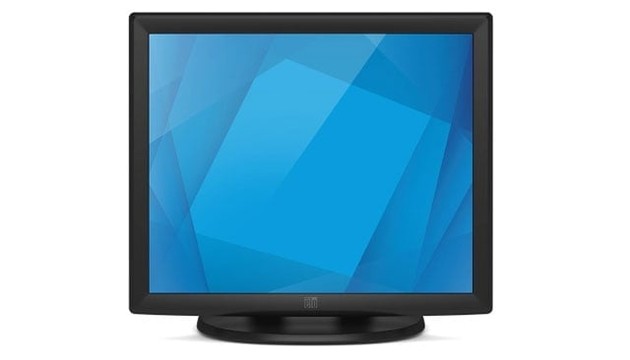

Elo 1915L, 19'', Touch Monitor, AccuTouch

SKU:

E607608

Fitted with 5-wire resistive AccuTouch technology, the Elo E607608 delivers touch input across a 19-inch viewable display at a maximum resolution of 1280 x 1024 in SXGA mode. Brightness reaches 300 Nit against an 800:1 contrast ratio, with 16.7 million colors supported and a 5 ms response time. The 5:4 aspect ratio panel offers a 160-degree horizontal viewing angle and a 155-degree vertical viewing angle for broad sightline coverage. USB and VGA interfaces handle connectivity and video input, while VESA 100 x 100 mount compatibility supports wall or stand installation. Operating power consumption is 50 W, and the unit weighs 17.40 lb in its gray chassis.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 1515L is a 15-inch LCD touchscreen monitor designed for system integrators, value-added resellers, and point-of-sale deployments in retail, hospitality, and light industrial environments. Built from the ground up as a purpose-made touch solution, it features 5-wire resistive multi-touch technology that accepts input from a finger, stylus, or gloved hand, making it well suited for demanding public-facing use. The 4:3 display delivers XGA resolution up to 1024 x 768 at 250 Nit brightness and a 700:1 contrast ratio with 16.7 million colors, while LED backlighting keeps power consumption to just 13 W. Its compact footprint, VESA mount compatibility, side-mounted lockable controls, and factory-sealed housing make it equally practical as a desktop or wall-mounted unit. A 3-year limited warranty rounds out a cost-effective, durable package.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 19"
Viewable Screen Size 19"
Screen Mode SXGA
Response Time 5 ms
Aspect Ratio 5:4
Horizontal Viewing Angle 160°
Vertical Viewing Angle 155°
Video
Maximum Resolution 1280 x 1024
Color Supported 16.7 Million Colors
Contrast Ratio 800:1
Brightness 300 Nit
Touchscreen Information
Touchscreen Yes
Touchscreen Type 5-wire Resistive
Interfaces/Ports
USB Yes
VGA Yes
Power Description
Operating Power Consumption 50 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Color Family Gray
Product Color Gray
Weight (Approximate) 17.40 lb
Documents
ico-plus ico-minus
Product document 1915l-2021.pdf E607608  (PDF)
FAQs
ico-plus ico-minus
What touch technologies are available in the Elo Touchscreen Monitor Series?
The series offers AccuTouch five-wire resistive and IntelliTouch surface acoustic wave technologies, designed for stable and drift-free operation across retail, hospitality, and light industrial environments.
What connectivity interfaces do the Elo Touchscreen Monitor Series displays support?
These monitors support USB and serial touch interfaces, along with VGA and HDMI video inputs.
What screen sizes and aspect ratios does the Elo Touchscreen Monitor Series cover?
The series spans integrated touchscreen sizes from 30.5 cm to 48.3 cm (12 to 19 inches) and offers both 4:3 and 16:9 aspect ratio options, including a widescreen model.
What is the maximum display resolution available in the Elo Touchscreen Monitor Series?
The maximum resolution supported is 1280 x 1024 pixels, with up to 16.2 million viewable colors.
What warranty does the Elo Touchscreen Monitor Series carry, and how long is the product lifecycle?
The series carries a standard 3-year warranty and is designed for a long product life cycle with worldwide agency approvals.
