Zebra

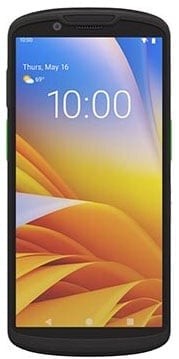

Zebra TC53e Mobile Computer Wi‑Fi 6E, 8GB RAM, 128GB Flash, SE55 Imager, Android 13, 4680 mAh Battery

SKU:

TC530E-0T1K6B1000-NA

The TC530E-0T1K6B1000-NA pairs 8 GB RAM and 128 GB flash storage with the SE55 advanced range imager, which reads 1D and 2D barcodes out to 40 ft, making scanning reach the deciding factor in this configuration of Zebra's TC53e family. The QCM4490 octa-core processor runs at 2.40 GHz under Android 13, upgradable through Android 17, while Wi-Fi 6E (IEEE 802.11ax) with 2x2 MU-MIMO, Bluetooth 5.3 BLE, and NFC cover enterprise wireless requirements. The 6-inch Full HD+ display resolves to 1080 x 2160 at 600 nit behind Corning Gorilla Glass 5, remaining viewable outdoors and operable with wet hands or gloves. A warm-swappable 4680 mAh Li-Ion battery keeps the unit running through extended shifts, and dual cameras -- 16 MP rear, 8 MP front -- support documentation workflows. IP65 and IP68 ratings and a drop specification that exceeds MIL-STD-810H to 8 ft on concrete cover environmental demands across an operating range of -4°F (-20°C) to 122°F (50°C), and the unit weighs 9.95 oz with battery. RoHS compliance and a one-year limited warranty apply.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra Mobile Computer is a rugged, enterprise-grade handheld designed to streamline data capture and mobile workflows across retail, warehouse, field service, and manufacturing environments. Built on Zebra’s TC53 platform, it delivers a 6.0-inch outdoor-viewable touchscreen, advanced 1D/2D imaging options and versatile wireless connectivity to keep teams productive in demanding conditions. The platform supports multiple memory and storage configurations, hot‑swappable batteries for continuous operation, and industry-grade sealing and shock resistance to reduce downtime. QuantumConnect 6 is positioned for organizations that require reliable scanning, secure Android-based application support and a durable hardware foundation for high-volume, mission-critical mobility operations.

Key Features

  • Advanced data capture: Choice of SE4720 or SE55 1D/2D imagers, including long-range options, enables fast, accurate barcode scanning across varied workflows.
  • Flexible performance configurations: Multiple RAM (4/6/8 GB) and internal storage (64/128 GB) options, with microSD expansion up to 2 TB, to match device performance to operational needs.
  • Modern wireless connectivity: Wi‑Fi 6E, cellular (5G where available), Bluetooth and NFC provide robust, low-latency communications for real-time data and peripheral support.
  • Rugged reliability: IP65/IP68 ingress protection and MIL‑STD‑810H shock/impact resistance deliver durability for harsh indoor and outdoor environments.
  • Shift-ready power: Removable PowerPrecision+ warm‑swap battery designs (typical capacities shown across variants) allow continuous operation with minimal interruptions.
  • Practical imaging and documentation: 16 MP rear and 8 MP front cameras support visual documentation, proof-of-delivery and remote collaboration tasks.

Specifications

  • Brand: Zebra
  • Product Name: Zebra Mobile Computer
  • Category: Handheld Computers
  • Operating System: Android
  • Display Size: 6.0 in
  • Display Resolution: 2160 x 1080 (Full HD variants reported)
  • RAM (variants): 4 GB / 6 GB / 8 GB
  • Internal Storage (variants): 64 GB / 128 GB
  • Expandable Storage (microSD): Up to 2 TB
  • Processor (examples): Qualcomm Snapdragon / Qualcomm 6490 octa-core (platform variants)
  • Imager / Scanner: SE4720 (standard/short range) or SE55 (advanced/long range)
  • Scanner Range: Standard / Short Range and Long Range options reported (up to ~40 ft with long-range SE55)
  • Rear Camera Resolution: 16 MP
  • Front Camera Resolution: 8 MP
  • Battery Capacity (examples): 4400 mAh / 4680 mAh (extended battery options reported)
  • Warm Swap Battery Support: Yes
  • Wireless Connectivity: Wi‑Fi 6E, 5G (where available), Bluetooth (various versions), NFC
  • USB / Ports: USB‑C (variants include LAN/ethernet support on select models)
  • Ingress Protection Rating: IP65 / IP68
  • Shock / Impact Standard: MIL‑STD‑810H
  • Optional Services / Platform Features: Google Mobile Services and Android Strongbox / secure element support present on select configurations
  • Physical (example): Dimensions and weight vary by configuration (example: 6.48 x 3.04 x 0.66 in, ~10.3 oz)

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • RAM/FLASH: 8GB / 128 GB

  • Battery Capacity: Standard

  • IP Rating: IP68

  • Range: Extended Range

  • Connection: NFC, USB

  • Keyboard: 53 Key Virtual Terminal

  • Camera: 16MP Rear Facing Camera + 8MP Front Facing Camera

  • Battery Features: Warm Swap

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE55
Image Sensor Type Imager
Light Source LED
Scanner Range Advanced Range
Scanning Distance 40 ft
Google Mobile Services (GMS) Yes
Wireless Charging Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Pressure Sensor
  • Proximity
  • Gyroscope
Brightness 600 Nit
Features
  • Push-to-talk
  • Drop Resistant
  • Corning Gorilla Glass
  • Gorilla Glass 5
  • Water Resistant
  • Vibration Alert
Drop Specification
  • Exceeds per MIL-STD-810H: 8 ft./2.4 m to concrete with the boot; 6 ft./1.8 m to tile over concrete stand alone terminal;
  • Enterprise drop standard: 6 ft./1.8 m to concrete with the boot across temperature exceeding MIL-STD-810H; 5 ft./1.5 m to tile over concrete across temperature exceeding MIL-STD-810H
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 8 GB
Flash Memory 128 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 6"
Screen Mode Full HD+
Screen Resolution 1080 x 2160
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 8 Megapixel
Rear Camera Yes
Rear Camera Resolution 16 Megapixel
Software
Operating System Android 13
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 4680 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Phone-size
Rugged Yes
Height 0.7"
Width 3"
Length 6.5"
Weight (With Battery) 9.95 oz
Miscellaneous
Package Contents
  • TC53E Handheld Terminal
  • Battery
Application/Usage
  • Retail
  • Field Sales/Service
  • Courier Service
Ingress Protection (IP) Rating
  • IP65
  • IP68
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
