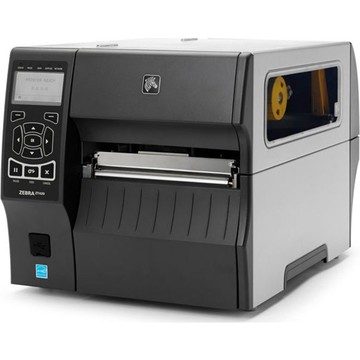

Zebra ZT420 Industrial Printer 300DPI, Direct Thermal/Thermal Transfer, PR/Rewind, Cutter, USB 2.0, 10/100 Ethernet

SKU:

ZT42063-T410000Z

Keep your critical operations running efficiently. Constructed with an all-metal frame and bi-fold door, ZT400 Series printers deliver advancements in print speed, registration and connectivity as well as additional advanced features. ZT400 printers feature USB, Serial, Ethernet and Bluetooth connectivity along with expanded RFID capabilities. And with Zebra's Link-OS environment, an innovative operating system, you can easily integrate, manage and maintain these printers from anywhere in the world
Description
ico-plus ico-minus
Anchura máxima de impresión 168 mm. Longitud máxima de cinta 450 m. Máxima velocidad de impresión 305 mm/s. Interfaz de usuario LCD. Resolución de impresión 203, 300 ppp. Lenguaje de control de impresora ZPL, EPL, otros

Main Features

  • Equipment Format: Desktop

  • RFID: Yes

  • Rugged: Industrial

  • Connection: Serial, USB, Ethernet, Bluetooth

  • Optional Upgrades: Cutter, Rewinder

  • Printing Technology: Thermal Transfer

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 12 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Width 6.61"
Barcode Symbology Supported
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Real Time Clock Yes
Rewinder Yes
Application/Usage Desktop
Features
  • Element Energy Equalizer
  • Bi-color LED
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 256 MB
Flash Memory 512 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
Media Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness 9.84 mil
Maximum Roll Diameter 8"
Maximum Label Width 6.73"
Maximum Label Length 39"
Label Core Size 3"
Ribbon Core Size 1"
Fonts & Emulation
Language Emulation
  • ZPL
  • EPL
  • ZPL II
  • XML
Software
Operating System Supported Zebra's Link-OS
Power Description
Power Source AC Supply
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 12.8"
Width 13.3"
Depth 19.5"
Weight (Approximate) 40 lb
Miscellaneous
Power Cable Localization US
Package Contents
  • ZT400 ZT420 Label Printer
  • US Power Cords
  • Software and Drivers CD
  • User Documentation
Cables Included AC
Platform Supported PC
Certifications & Standards
  • Uni Code
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark (Arg)
  • CCC
  • CU
  • BSMI
  • KCC
  • SABS
  • IN-Metro
Energy Star Yes
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mod-zt420-zebra-label-printer-datasheet.pdf ZT42063-T410000Z Product document mod-zt420-zebra-label-printer-quick-guide-2.pdf ZT42063-T410000Z Product document Logiscenter_zebra_zt400.pdf ZT42063-T410000Z Product document mod-zt420-zebra-label-printer-datasheet.pdf MOD-ZT420 Product document mod-zt420-zebra-label-printer-quick-guide-2.pdf MOD-ZT420
