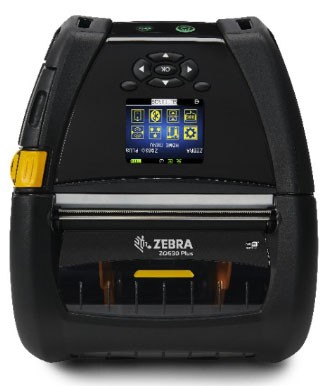

Zebra ZQ630 Plus, Wi-Fi 5, Bluetooth, 19mm Core
ZQ63-AUWAE14-00
Select model
Key Features
- Instant Wake-Up Over Wi-Fi: Quickly wakes from sleep mode when a print job is received.
- Durable Design: Built to withstand daily wear with IP54 rated protection against dust and water.
- Advanced Battery Management: High-capacity batteries with Power Smart Print Technology™ for maximum efficiency.
- Seamless Wireless Connectivity: Supports 802.11ac Wi-Fi and Bluetooth® for reliable connections.
- Large Color Display: User-friendly interface for easy configuration and operation.
Specifications
- Print Resolution: 203 dpi
- Print Speed: Up to 4.5 in./115 mm per second
- Battery Type: ZQ630/ZQ630 Plus: 6800 mAh removable, rechargeable PowerPrecision+ Li-Ion battery
- Memory: 256 MB RAM; 512 MB Flash
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Weight: 2.45 lbs (1.1 kg)
- Connectivity: Wi-Fi, Bluetooth 4.2, USB 2.0, Serial interface
- Media Width: ZQ630/ZQ630 Plus: up to 4.1 in./104 mm
- Compatibility: Backward compatible with QLn series accessories
Main Features
-
Equipment Format: Desktop
-
POS: Yes
-
Connection: Bluetooth
-
Printing Technology: Direct Thermal
| Technical Information | |
|---|---|
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 4.53 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 32.01" |
| Maximum Print Width | 4.09" |
| Barcode Symbology Supported |
|
| Application/Usage |
|
| Features |
|
| Mobile Device Printing | Yes |
| Ingress Protection (IP) Rating | IP54 |
| Character Sets |
|
| Connectivity Technology | Wireless |
| Optional Connectivity |
|
| Print Technology | Direct Thermal |
| Memory | |
|---|---|
| Standard Memory | 256 MB |
| Network & Communication | |
|---|---|
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Near Field Communication (NFC) | Yes |
| Display & Graphics | |
|---|---|
| Display Screen | Yes |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Media Sensor |
|
| Media Thickness | 6.50 mil |
| Maximum Roll Diameter | 2.60" |
| Maximum Label Width | 4.40" |
| Maximum Label Length | 32" |
| Fonts & Emulation | |
|---|---|
| Language Emulation |
|
| Power Description | |
|---|---|
| Power Source | Battery |
| Battery Information | |
|---|---|
| Battery Capacity | 6800 mAh |
| Environmental Conditions | |
|---|---|
| Operating Temperature | -4°F (-20°C) - 122°F (50°C) |
| Operating Relative Humidity | 10% - 90% |
| Storage Temperature | -13°F (-25°C) - 149°F (65°C) |
| Storage Relative Humidity | 10% - 90% |
| Physical Characteristics | |
|---|---|
| Height | 3.3" |
| Width | 6.5" |
| Depth | 7.4" |
| Weight (Approximate) | 2.43 lb |
| Miscellaneous | |
|---|---|
| Platform Supported |
|
zq600-series.pdf MOD-ZQ630-PLUS
