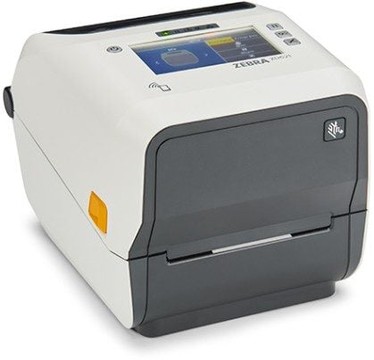

Zebra ZD621 Label Printer Healthcare, 300dpi, Thermal Transfer, Color Touch LCD, USB, Ethernet, Serial, BTLE
ZD6AH43-301F00EZ
Select model
The Zebra ZD621-HC Barcode Label Printer is a cutting-edge solution tailored for the healthcare environment, offering high-quality and reliable performance. It features an innovative architecture that enhances security to protect sensitive patient information, making it an essential part of any medical facility's operations. With its user-friendly 4.3-inch full-color LCD touch display and easy-to-sanitize design, the ZD621-HC excels at producing labels for prescriptions, patient IDs, and more, all while withstanding the demands of a busy healthcare setting.
Key features:
- Disinfectant-ready plastics designed for easy cleaning
- High-speed printing at up to 8 inches per second
- Robust connectivity options, including Ethernet, USB, and optional Wi-Fi and Bluetooth
- Advanced security features to safeguard patient data
- Intuitive user interface with a large touch display for easy navigation
Specifications:
- Dimensions: Direct Thermal: 8.7 in. L x 7.0 in. W x 5.9 in. H; Thermal Transfer: 10.5 in. L x 8.0 in. W x 7.5 in. H
- Weight: Direct Thermal: 3.6 lbs; Thermal Transfer: 5.5 lbs
- Print Resolution: 203 dpi (8 dots/mm) or optional 300 dpi (12 dots/mm)
- Operating Temperature: 40° to 105° F (4.4° to 41° C)
- Media Types: Roll-fed or fan-fold, die-cut or continuous labels, wristbands
- Print Speed: Up to 8 in./203 mm per second (203 dpi)
- Memory: 512 MB Flash; 256 MB SDRAM
- Warranty: 2 years from the date of shipment
Main Features
-
Equipment Format: Desktop
-
RFID: Yes
-
Rugged: Commercial
-
POS: Yes
-
Case color: White
-
Connection: Serial, USB, Ethernet, Bluetooth
-
Real Time Clock: Yes
-
Printing Technology: Thermal Transfer
| Technical Information | |
|---|---|
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5.98 in/s |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Width | 4.25" |
| Real Time Clock | Yes |
| Application/Usage | Desktop |
| Features |
|
| Mobile Device Printing | Yes |
| Print Technology | Thermal Transfer |
| Memory | |
|---|---|
| Standard Memory | 256 MB |
| Interfaces/Ports | |
|---|---|
| Serial Port | Yes |
| USB Host | Yes |
| USB | Yes |
| Network & Communication | |
|---|---|
| Ethernet | Yes |
| Bluetooth | Yes |
| Near Field Communication (NFC) | Yes |
| Display & Graphics | |
|---|---|
| Display Screen | Yes |
| Screen Size | 4.3" |
| Display Screen Type | LCD |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Maximum Roll Diameter | 5" |
| Maximum Label Width | 4.65" |
| Maximum Label Length | 39.02" |
| Fonts & Emulation | |
|---|---|
| Language Emulation |
|
| Power Description | |
|---|---|
| Power Source | AC Supply |
| Physical Characteristics | |
|---|---|
| Height | 7.5" |
| Width | 8" |
| Depth | 10.5" |
| Weight (Approximate) | 5.50 lb |
| Miscellaneous | |
|---|---|
| Power Cable Localization | US |
| Package Contents |
|
| Cables Included |
|
| Power Adapter Included | Yes |
| Platform Supported |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
|---|---|
| Limited Warranty | 2 Year |
