Zebra

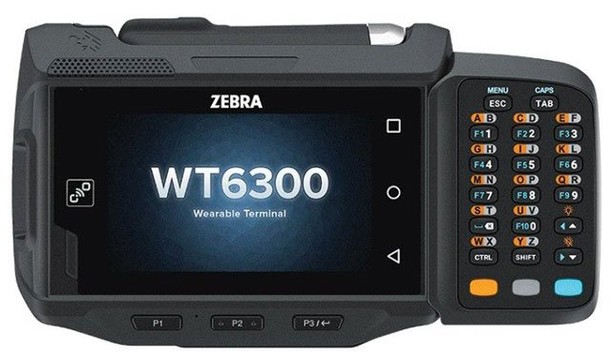

Zebra WT6300 Wearable Computer, Android 11, 3.2 in Display, 3GB RAM, 32GB Flash, IP65, Bluetooth 5.0

SKU:

WT63B0-KX0QNENA

Zebra WT6300 Mobile Computer. A rugged, wearable mobile computer designed for hands-free scanning and efficient data capture in demanding enterprise environments. Built for durability and ergonomic wearability to help boost worker productivity across warehouses, manufacturing, and retail. Key attributes: Form Factor Operating System Keypad Type Connectivity IP Rating Scanner Included
Description
ico-plus ico-minus

The Zebra WT6300 Wearable Computer redefines hands-free mobility for industrial environments. Tailored for the fast-paced world of e-commerce, it enhances picking and sorting efficiency in warehouses and retail settings. Featuring a powerful Android 10 OS and a flexible keypad option, productivity and order accuracy reach new heights. Built for the toughest conditions, the WT6300 is both rugged and equipped with advanced Bluetooth 5.0 for superior connectivity. With hot-swappable batteries and a glove-friendly display, this device enables your workforce to stay productive without interruptions, even in challenging environments like freezers.


Key Features
  • Rugged Design: IP65 rated, dustproof, and water-resistant.
  • Glove-Optimized Display: Touch-sensitive and responsive even when wet.
  • Hot-Swappable Batteries: Extended battery life for longer shifts.
  • Powerful Performance: Qualcomm Snapdragon 660 processor with Android 10.
  • Advanced Connectivity: Bluetooth 5.0 and high-speed WiFi support.
  • Easy Migration: Backwards compatibility with WT6000 accessories.

Specifications
  • Dimensions: 4.7 in. L x 3.5 in. W x 0.7 in. D
  • Weight: 9 oz. (with standard battery)
  • Display: 3.2 in. WVGA (800x480) color touch panel
  • Battery: 3350 mAh standard / 5000 mAh extended
  • Operating Temp: -22°F to 122°F
  • Storage Temp: -40°F to 158°F
  • CPU: Qualcomm Snapdragon 660 octa-core, 2.2 GHz
  • Memory: 3 GB RAM, 32 GB Flash
  • Wireless Communication: WLAN, WPAN (Bluetooth), USB 2.0
  • Battery Life: Hot swap, PowerPrecision+ battery management

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • IP Rating: IP65

  • Range: Standard Range

  • Connection: NFC, USB

  • Optional Upgrades: Wrist Mount

  • Keyboard: 29 Key Numeric

  • Camera: None

  • Included Battery: Yes

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Google Mobile Services (GMS) Yes
Sensor Type
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Features
  • Water Resistant
  • Gorilla Glass
  • Push-to-talk
Drop Specification Multiple 4 ft./1.2 m drop to concrete across operating temperature per MIL-STD 810G


Processor & Chipset
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 3 GB
Flash Memory 32 GB
Display & Graphics
Screen Size 3.2"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Keyboard Type Alphanumeric
Buttons & Keys

Volume up, volume down, enter; programmable
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Software
Operating System Android 10
Upgradable Operating System Android 11
Power Description
Power Source Battery
Battery Information
Battery Capacity 5000 mAh
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature -22°F (-30°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Width 3.5"
Depth 7"
Length 4.7"
Weight (With Battery) 11.01 oz
Miscellaneous
Package Contents
  • WT6300 Wearable Computer
  • Extended Battery
Application/Usage
  • Warehouse
  • Distribution
  • Transportation
  • Logistics
  • Retail
  • Manufacturing
Ingress Protection (IP) Rating IP65
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the WT6300 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment.
Documents
ico-plus ico-minus
Product document wt6300.pdf MOD-WT6300
