Zebra

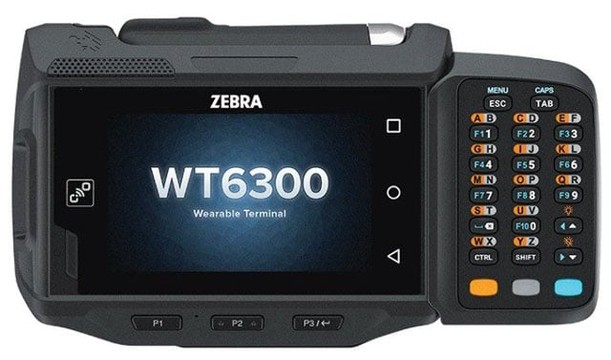

Zebra WT6300 Wearable Computer, 3.2" Touch Display, Keypad, 3GB RAM, 32GB Flash, IP65

SKU:

WT63B0-KS0QNENA

Rated IP65 and tested across its full operating range of -22°F (-30°C) to 122°F (50°C), the Zebra WT63B0-KS0QNENA handles dust, water, and freezer environments that would compromise lighter-duty wearables. It pairs a glove-optimized, 3.2-inch WVGA touchscreen at 800 x 480 resolution — protected by Corning Gorilla Glass — with an external 53-key alphanumeric keypad, giving operators a choice of input methods without removing gloves. An octa-core Qualcomm Snapdragon 660 running at 2.20 GHz drives the platform, backed by 3 GB RAM and 32 GB of flash storage. The removable 3350 mAh lithium-ion battery is hot-swappable, and the device weighs 9 oz with battery installed. Wireless coverage runs across IEEE 802.11 a/b/g/n/ac, alongside Bluetooth 5.0 and NFC, while motion sensor, gyroscope, and accelerometer support orientation-aware applications. The unit is drop-rated for multiple 4 ft./1.2 m drops to concrete across its full operating temperature range and ships with Android 10 and Google Mobile Services. A wrist mount is available as an optional upgrade, and the WT63B0-KS0QNENA is backed by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra WT6300 Mobile Hub is an enterprise-grade wearable mobile computer designed to streamline hands‑free workflows in warehouses, distribution centers, retail backrooms and field operations. Built on a rugged platform, the WT6300 family combines a glove‑optimized 3.2‑inch color touchscreen with Corning Gorilla Glass, enterprise Android, and Qualcomm octa‑core processing to deliver responsive application performance and fast data capture. With Wi‑Fi 802.11ac, Bluetooth 5.0, optional NFC, hot‑swappable lithium‑ion batteries and IP65 sealing, the device minimizes downtime, improves operator productivity and adapts to cold‑storage and high‑throughput environments while remaining compatible with Zebra WT6000 accessories and ring‑style scanners.

Key Features

  • Hands‑free productivity: Wearable form factor and wrist/arm mounting options keep operators’ hands free for picking, packing and material handling tasks.
  • Glove‑optimized touchscreen: 3.2‑inch glove‑sensitive AMOLED/WVGA display with wet‑touch support enables reliable interaction without removing protective gear.
  • Rugged and cold‑ready: IP65 ingress protection, Corning Gorilla Glass and MIL‑STD 810G drop testing provide durability for dusty, wet and freezer environments.
  • Enterprise connectivity: Wi‑Fi 802.11ac (Wi‑Fi 5), Bluetooth 5.0 and optional NFC ensure fast, secure wireless data exchange and peripheral support.
  • Continuous operation: Hot‑swappable lithium‑ion battery options reduce interruptions during shifts and support extended uptime in demanding workflows.

Specifications

  • Brand: Zebra
  • Product Name: Zebra WT6300 Mobile Hub
  • Operating System: Android 10; Android 11 (some variants, upgradeable to Android 14 where specified)
  • Processor: Qualcomm Snapdragon 660 octa‑core, 2.2 GHz
  • RAM: 3 GB
  • Flash Storage: 32 GB
  • Display Size: 3.2 in
  • Display Type: AMOLED / WVGA color
  • Display Resolution: 800 x 480 px
  • Touchscreen: Yes (glove‑optimized, works when wet)
  • Protective Glass: Corning Gorilla Glass
  • Wi‑Fi: 802.11ac (Wi‑Fi 5); backward compatible with 802.11a/b/g/n
  • Bluetooth: Bluetooth 5.0
  • NFC: Available on select variants
  • Ingress Protection Rating: IP65
  • Drop Resistance: 4 ft / 1.2 m to concrete; tested to MIL‑STD 810G
  • Battery Type: Lithium‑ion (PowerPrecision+ on select models)
  • Battery Capacity: 3350 mAh (standard); 5000 mAh on select variants
  • Hot‑swappable Battery: Yes
  • Dimensions: 4.7 x 3.5 x 0.7 in
  • Weight: 9–11 oz (varies by configuration)
  • Camera: No / None on available configurations
  • Keypad / Input: Touch display; external keypad or keyboard available on select variants
  • Accessory Compatibility: Compatible with WT6000 accessory ecosystem; supports Zebra ring scanners (RS6000, RS5100) and other peripheral options

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • IP Rating: IP65

  • Range: Standard Range

  • Connection: NFC

  • Pin: 8

  • Optional Upgrades: Wrist Mount

  • Keyboard: 53 Key Standard Alpha Numeric

  • Camera: None

  • Included Battery: Yes

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Google Mobile Services (GMS) Yes
Sensor Type
  • Motion Sensor
  • Gyroscope
  • Accelerometer
Features
  • Gorilla Glass
  • Water Resistant
  • Push-to-talk
Drop Specification Multiple 4 ft./1.2 m drops to concrete across operating temp
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 3 GB
Flash Memory 32 GB
Display & Graphics
Screen Size 3.2"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Buttons & Keys

Volume up, volume down, enter, programmable
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Near Field Communication (NFC) Yes
Software
Operating System Android 10
Power Description
Power Source Battery
Battery Information
Battery Capacity 3350 mAh
Removable Battery Yes
Environmental Conditions
Operating Temperature -22°F (-30°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Height 4.7"
Width 3.5"
Depth 0.7"
Weight (With Battery) 9 oz
Miscellaneous
Package Contents
  • WT6300 Wearable Computer
  • Battery
Application/Usage
  • Warehouse
  • Retail
  • Industrial
Ingress Protection (IP) Rating IP65
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document wt6300.pdf MOD-WT6300
