Zebra

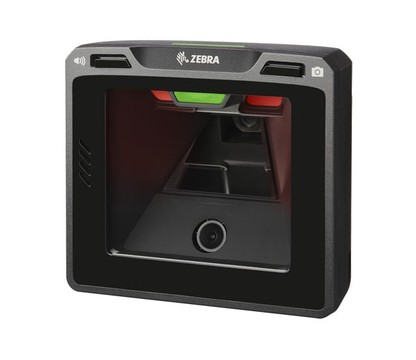

Zebra SP7201 Barcode Scanner Single Plane, Vertical, USB Only, DL Parsing, Checkpoint EAS, Midnight Black

SKU:

SP7201-DV00004ZCNA

Barcode Scanners, Zebra SP72-V, SP7201: Single Plane, Vertical, USB Only, No AUX Port, DL Parsing, Midnight Black, Checkpoint EAS (CBL-CE0072 Cable Included), NA Only
Description
ico-plus ico-minus

The Zebra SP72-V Barcode Scanner is your ultimate solution for streamlining the checkout experience, whether in grocery stores, pharmacies, or specialty shops. Designed for efficiency, this compact vertical scanner enables rapid scanning with its flat face design, making it ideal even for self-checkout kiosks. With features like a color camera for enhanced loss prevention and the ability to capture damaged or poorly printed barcodes, the SP72-V ensures minimal shrink and maximum speed. Elevate service levels, reduce wait times, and improve your bottom line with this innovative device.


Key Features
  • High-Speed Scanning: Up to 120 inches per second for quick customer checkouts.
  • Versatile Design: Compact vertical design suitable for various installations.
  • Color Camera Option: Fosters advanced loss prevention capabilities.
  • Intelligent Imaging: Captures even damaged barcodes with seamless efficiency.
  • EAS Integration: Simplifies the deactivation of security tags during checkout.

Specifications
  • Dimensions: 5.4 in. H x 6.0 in. W x 3.3 in. D
  • Weight: 20.3 oz. (577 g)
  • Operating Temperature: 32°F to 104°F (0°C to 50°C)
  • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
  • Connectivity: USB, RS232, Keyboard Wedge
  • Barcode Capability: Supports major 1D and 2D barcodes, including QR codes.
  • Environmental Protection: IP52 rated, protects against dust and spills.
  • Warranty: Three years from the date of shipment.

Main Features

  • Rugged: Commercial

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/ EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D:

  • All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

Digimarc:

  • Digimarc barcodes
Light Source LED
Scanning Distance 9"
Features
  • Sensormatic EAS
  • Checkpoint EAS
  • Beep
  • Data Formatter
  • Notification LED
Cable Type Included USB
Field of View (Horizontal) 54°
Field of View (Vertical) 36°
Reading Angle (Skew) 70°
Reading Angle (Pitch) 80°
Reading Angle (Roll) 360°
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 86100 lux
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 15 mil
Minimum Element Resolution (PDF417) 15 mil
Image Sensor Resolution 1920 x 1200
Illumination Type LED
Illumination Color Red
Air Electrostatic Discharge (+/-) 15kV
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 20% to 95%
Physical Characteristics
Form Factor In-counter
Color Family Black
Product Color Midnight Black
Durability
  • Spill Resistant
  • Dust Resistant
  • Dust Proof
Height 5.4"
Width 6"
Depth 3.3"
Weight (Approximate) 1.27 lb
Miscellaneous
Package Contents
  • 1 x SP7201 Series Single-Plane Scanner
  • 1 x Cable
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Pharmacy
  • Convenience Store
  • Self-checkout
  • Kiosk
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document sp72-series.pdf SP7201-DV00004ZCNA Product document sp72-series.pdf MOD-SP72-V
