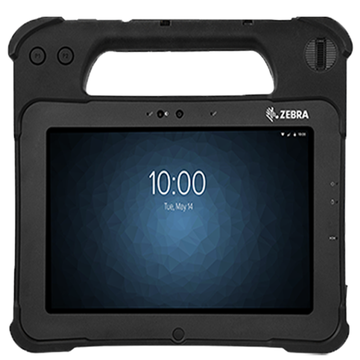

Zebra L10 XPAD, 2D, USB, USB-C, BT, Ethernet, Wi-Fi, 5G, NFC, GPS, Win. 10 Pro
RTL10C1-3C43X1X
Select model
The Zebra L10 Android Rugged Tablet family offers unparalleled versatility and performance for demanding work environments. Designed for rugged use in industries such as oil, gas, mining, telecommunications, and military, these tablets stand up to the harshest conditions. With customizable accessories, seamless connectivity options, and an ultra-powerful processor, workers can stay productive no matter where they are. Featuring a user-friendly multi-touch display built with **Corning Gorilla Glass**, the L10 tablets ensure durability while providing optimal performance in any lighting condition.
Key features:
- Rugged 10.1-inch multi-touch display with glove and wet touch capability
- Advanced 8-core processor for smooth performance
- Long-lasting battery with up to 26 hours of power
- Waterproof, dustproof, and drop-proof design for resilience
- Integrated front and rear cameras for versatile data capture
- Multiple connectivity options, including Wi-Fi, Bluetooth, and LTE
Specifications:
- Dimensions:
- XSLATE: 11 in. L x 7.7 in. W x .88 in. D
- XPAD: 11 in. L x 10.0 in. W x .88 in. D
- XBOOK: 11 in. L x 8.2 in. W x 2.5 in. D
- Weight:
- XSLATE: 2.7 lbs/1.2 kg
- XPAD: 3.0 lbs/1.4 kg
- XBOOK: 4.4 lbs/2.0 kg
- Operating Temperature: -4° F to 140° F / -20° C to 60° C
- Battery:
- Standard: 36 WHr with up to 9.8 hours
- Extended: 98 WHr with up to 26 hours
- Processor: Qualcomm Snapdragon 660 octa-core 2.2 GHz
- OS: Android 8.1 Oreo
- Display:
- 10.1-inch 1920 x 1200 resolution
- Optional 1000 Nit View Anywhere display
- Connectivity:
- Wi-Fi 802.11 a/b/g/n/ac
- Bluetooth 5.0
- 4G LTE with dual SIM slots
Main Features
-
Operation System: Windows
-
Rugged: Industrial
-
GPS: Yes
-
Connection: Bluetooth
| Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 11th Gen |
| Processor Speed | 2.20 GHz |
| vPro Technology | Yes |
| Memory | |
|---|---|
| Standard Memory | 16 GB |
| Memory Technology | LPDDR4X |
| Memory Card Supported |
|
| Storage | |
|---|---|
| Solid State Drive Capacity | 512 GB |
| Display & Graphics | |
|---|---|
| Screen Size | 10.1" |
| Display Screen Technology | View Anywhere |
| Aspect Ratio | 16:10 |
| Screen Mode | WUXGA |
| Screen Resolution | 1920 x 1200 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Network & Communication | |
|---|---|
| WWAN Supported | Yes |
| SIM Size Supported |
|
| Cellular Phone Capability | Yes |
| Cellular Network Supported |
|
| Cellular Generation | 5G |
| Cellular Data Connectivity Technology | LTE |
| GPS | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Interfaces/Ports | |
|---|---|
| Number of USB 3.0 Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | USB Type-C Port (USB 2.0, USB 3.0, Display Port out) |
| Built-in Devices | |
|---|---|
| Sensor Type |
|
| Front Camera | Yes |
| Front Camera Resolution | 2 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 13 Megapixel |
| Finger Print Reader | Yes |
| Operating System | |
|---|---|
| Operating System Platform | Windows |
| Operating System | Windows 10 Pro |
| Operating System Architecture | 64-bit |
| Battery Information | |
|---|---|
| Maximum Battery Run Time | 9.50 Hours |
| Physical Characteristics | |
|---|---|
| Rugged | Yes |
| Form Factor | Slate |
| Height | 11" |
| Width | 10" |
| Depth | 0.9" |
| Weight (Approximate) | 3.09 lb |
| Miscellaneous | |
|---|---|
| Features |
|
| Energy Star | Yes |
