Zebra

RTL10B1-B1AS0X0000NA

SKU:

RTL10B1-B1AS0X0000NA

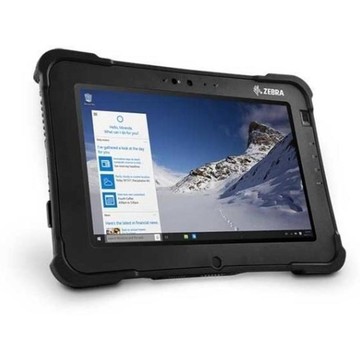

The Zebra RTL10B1-B1AS0X0000NA is a genuine Zebra tablet. Designed to Zebra OEM specifications for reliable, warranty-safe operation.
Description
ico-plus ico-minus

The Zebra L10ax Windows Rugged Tablets are engineered for the toughest work environments, offering unparalleled mobile connectivity and performance. With options for Wi-Fi 6E and 5G/4G support, your team stays connected to essential data and communications, ensuring productivity across industries like construction, public safety, and manufacturing. Powered by Intel's 11th generation processors and customizable with a range of accessories, these tablets deliver performance and reliability in all conditions—from cold storage to extreme heat, making them a versatile solution for every worker's needs.


Key Features:

  • Rugged Design: Waterproof, dustproof, and drop-proof with MIL-STD-810H certification.
  • Advanced Connectivity: Supports Wi-Fi 6E, optional 5G/4G, and Bluetooth 5.2.
  • High Performance: Up to 25 hours of battery life with removable, hot-swappable options.
  • Enhanced Data Capture: Integrated barcode scanner and high-quality cameras for versatile functionality.
  • Multiple Models: XSlate, XPad, and XBook configurations tailored for different tasks.

Specifications:

  • Physical Characteristics:
    • Dimensions: XSlate - 11.0" L x 7.7" W x 0.88" D; XPad - 11.0" L x 10.0" W x 0.88" D; XBook - 11.0" L x 8.3" W x 2.36" D
    • Weight: XSlate - 2.8 lbs; XPad - 3.1 lbs; XBook - 4.63 lbs
    • Display: 10.1 in., 1920 x 1200 resolution with capacitive touch
  • Performance:
    • Processor: 11th Gen Intel® Core™ i7/i5 vPro™
    • Operating System: Windows® 10 Pro, Windows 11 capable
    • Battery Life: Standard - up to 9.5 hours; Extended - up to 25 hours
  • Connectivity:
    • Ports: USB 3.0, USB Type-C, Ethernet, audio output
    • NFC and RFID options available
  • Environmental:
    • Operating Temperature: -4°F to 140°F
    • Sealing: IP65 rated
    • Drop Resistance: 6 ft. drops to concrete

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • GPS: Yes

  • Connection: Bluetooth

Technical Specifications
ico-plus ico-minus
Processor
Processor Speed 2.20 GHz
Processor Core Octa-core (8 Core)
Chipset
Chipset Manufacturer Qualcomm
Chipset Model Snapdragon 660
Memory
Standard Memory 4 GB
Memory Card Supported microSDXC
Storage
Flash Memory Capacity 64 GB
Display & Graphics
Screen Size 10.1"
Display Screen Technology
  • View Anywhere
  • Anti-glare
Aspect Ratio 16:10
Screen Mode WUXGA
Screen Resolution 1920 x 1200
Graphics Controller Manufacturer Qualcomm
Graphics Controller Model Adreno 512
Graphics Memory Accessibility Shared
Network & Communication
WWAN Supported Yes
SIM Size Supported Nano
Cellular Phone Capability Yes
Cellular Generation 4G
Cellular Data Connectivity Technology
  • GPRS
  • EDGE
  • LTE
  • UMTS
  • HSPA
  • HSPA+
GPS Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Bluetooth Yes
Near Field Communication Yes
Interfaces/Ports
USB Type-C Yes
USB Type-C Detail USB Type-C port (USB 2.0, USB 3.0, Display Port)
Built-in Devices
Sensor Type
  • 3-axis Accelerometer
  • Gyroscope
  • Ambient Light Sensor
  • eCompass
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Focus Modes Auto-focus
Operating System
Operating System Platform Android
Operating System Android 11
Upgradable Operating System Android 14
Battery Information
Maximum Battery Run Time 9.80 Hours
Physical Characteristics
Rugged Yes
Form Factor Slate
Height 11"
Width 7.7"
Depth 0.9"
Weight (Approximate) 2.70 lb
Miscellaneous
Features
  • Gorilla Glass 3
  • Glove Touch
  • Water Proof
  • Dust Proof
  • Drop Proof
  • Shock Proof
  • Vibration Resistant
  • GLONASS
  • Galileo
  • Beidou
  • Anti-Shock
Energy Star Yes
Environmentally Friendly Yes
Environmental Certification
  • RoHS 2
  • WEEE
  • Battery Directive
  • EPEAT Silver
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document mod-xslate-l10-zebra-tablets-datasheet.pdf RTL10B1-B1AS0X0000NA Product document mod-xslate-l10-zebra-tablets-quick-guide.pdf RTL10B1-B1AS0X0000NA Product document mod-xslate-l10-zebra-tablets-user-manual.pdf RTL10B1-B1AS0X0000NA
