Zebra

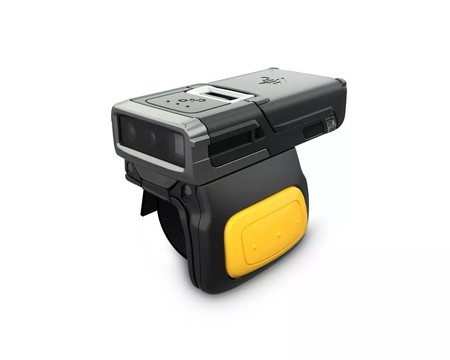

Zebra RS5100 Bluetooth Ring Scanner

SKU:

RS51C0-TESNWR

Fitted with the SE4770 scan engine, the Zebra RS51C0-TESNWR is a Bluetooth wearable ring scanner that reads 1D and 2D barcodes plus OCR-A and OCR-B at a standard range of up to 36.10 in, with a 48-degree horizontal and 30-degree field of view and full 360-degree roll tolerance. Code 39 resolves down to 3 mil and up to 20 mil; DataMatrix to 10 mil; PDF417 between 5 mil and 6.7 mil. The scanner operates in ambient light up to 107639 lux and withstands multiple 6 ft./1.8 m drops to concrete across the operating temperature range, backed by IP65 ingress protection. Weighing 2.47 oz in a 2.7 in by 1.1 in by 0.8 in black and silver chassis, it ships with a battery included. RoHS and REACH compliant, it carries a 1-year limited warranty and suits warehouse, distribution, manufacturing, logistics, retail and hospitality workflows.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra RS5100 is a Bluetooth wearable ring scanner built for mobile workers in warehousing, distribution, manufacturing, retail, transportation and logistics, and field service operations. Worn on a single finger, back of hand, or lanyard, it delivers true hands-free scanning so operators can pick, pack, sort, and receive without setting down a handheld device. Choice of SE4710 or SE4770 1D/2D standard-range imaging engines — powered by PRZM Intelligent Imaging and a megapixel sensor — ensures fast, accurate capture of even damaged or poorly printed barcodes across a comprehensive range of 1D, 2D, and OCR symbologies. IP65-sealed and drop-tested to 6 ft./1.8 m on concrete, the RS5100 weighs just 2.47 oz./70 g yet handles the rigors of industrial environments across full shifts, backed by a swappable PowerPrecision+ Li-ion battery that delivers up to 12 hours or 14,400 scans per charge.

Main Features

  • Rugged: Industrial

  • Connection: Bluetooth

  • Scanner Capability: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B
Scan Engine Model SE4770
Light Source Laser
Scanner Range Standard Range
Scanning Distance 36.10"
Field of View (Horizontal) 48°
Field of View (Vertical) 30°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 107639 lux
Drop Specification Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Maximum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 6.7 mil
Network & Communication
Bluetooth Yes
Battery Information
Battery Included Yes
Physical Characteristics
Form Factor Wearable
Rugged Yes
Product Color
  • Black
  • Silver
Width 1.1"
Depth 0.8"
Length 2.7"
Weight (Approximate) 2.47 oz
Miscellaneous
Package Contents
  • RS5100 Bluetooth Wearable Scanner
  • Battery
Ingress Protection (IP) Rating IP65
Application/Usage
  • Warehouse
  • Distribution
  • Picking
  • Packing
  • Sorting
  • Transportation
  • Logistics
  • Manufacturing
  • Inventory
  • Retail
  • Hospitality
  • Price Checking
  • Field Sales/Service
  • Route Accounting
  • Industrial
  • Smartphone
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document rs5100.pdf RS51C0-TESNWR Product document 5bbeff8a6a46aa097c836adcc7626747.pdf RS51C0-TESNWR Product document rs5100.pdf MOD-RS5100
