Zebra

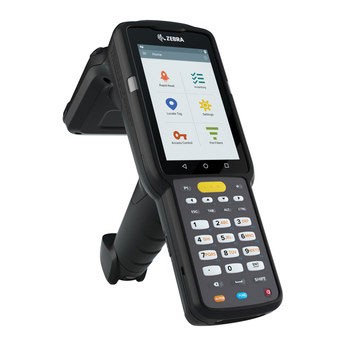

Zebra MC3390XR Mobile Computer 2D, Extended Range, SE4850, Pistol Grip, RFID UHF, 47-Key Alphanumeric

SKU:

MC339U-GE4EG4WR

Equipped with an extended-range SE4850 imager and integrated UHF RFID with an approximately 60 ft read range, the Zebra MC339U-GE4EG4WR is a pistol-grip handheld terminal built for high-throughput inventory and order fulfillment work. An integrated NFC reader supplements the UHF RFID capability, while IP54 sealing protects against dust and splashing liquid in demanding warehouse environments. The device runs Android over IEEE 802.11a/b/g/n/ac wireless, backed by 4 GB of RAM and 32 GB of flash storage. Its 4-inch WVGA display and 47-key alphanumeric keypad support eyes-up operation, and Bluetooth extends connectivity options. At 1.69 lb in a gun form factor measuring 6.5 inches tall and 3.8 inches wide, it supports both right- and left-handed single-handed use. A 12-month limited warranty applies.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra UltraRange RFID Pro is a rugged handheld mobile computer designed to accelerate RFID and barcode capture for warehouses, distribution centers, retail, and field logistics. Built around an integrated linear-polarized UHF RFID antenna and extended-range imaging modules, the platform enables fast tag reads and long-distance barcode scanning to reduce manual handling and speed inventory cycles. Powered by Android 10 (GMS) with a Qualcomm Snapdragon processor, 4 GB RAM and 32 GB flash, the device supports enterprise connectivity and applications while a high-capacity 7000 mAh rechargeable battery, IP54 ingress protection and drop resistance provide dependable all-day operation in demanding industrial environments. Multiple keypad and imager configurations accommodate varied workflow needs.

Key Features

  • Long-range RFID capture: Integrated linear-polarized UHF antenna and supported RFID standards deliver efficient tag reads for inventory and asset tracking.
  • Extended-range imaging: Optional SE4850 or SE4750 extended-range 1D/2D imagers enable accurate barcode capture at greater distances for faster throughput.
  • Rugged, ergonomics-first design: Gun/pistol-grip form factors and IP54 sealing with drop resistance up to 1.5 m (5 ft) are built for continuous use in harsh warehouses and field environments.
  • Enterprise-grade platform: Android 10 (GMS) with a Snapdragon octa-core processor, 4 GB RAM and 32 GB flash provide responsive performance for business applications and device management.
  • Extended shift battery life: A 7000 mAh rechargeable Li‑Ion battery supports long operating periods to minimize downtime between charges.
  • Broad connectivity: Wi‑Fi (802.11 a/b/g/n/ac), Bluetooth 5.0, NFC and USB interfaces enable real-time data exchange and flexible system integration.

Specifications

  • Brand: Zebra
  • Product Name: Zebra UltraRange RFID Pro
  • Category / Product Type: Handheld Computer / Mobile Computer / RFID Reader
  • Operating System: Android 10 (GMS)
  • Processor: Qualcomm Snapdragon 660 octa-core
  • Processor Speed: 2.2 GHz
  • RAM: 4 GB
  • Flash Memory / Storage: 32 GB
  • Display Size: 4.0 in
  • Display Type / Protection: Capacitive color WVGA, Corning Gorilla Glass
  • Imager / Scanner Modules: SE4850 (extended range) and SE4750MR (variants)
  • Scanner Type / Range: Extended-range 1D/2D imager (long/extended range)
  • RFID Frequency Band: UHF
  • RFID Protocols / Standards: EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63
  • Antenna Polarization: Linear Polarized
  • RFID Nominal Read Range: 60+ ft / 18.2+ m (typical, variant dependent)
  • Keypad / User Input: Configurations include 29-key numeric, 38-key functional numeric, and 47-key alphanumeric
  • Form Factor: Gun / Pistol grip
  • Battery Type: Rechargeable Li‑Ion
  • Battery Capacity: 7000 mAh
  • Wireless / Connectivity: Wi‑Fi 802.11 a/b/g/n/ac (Wi‑Fi 5), 2x2 MU‑MIMO (where specified), Bluetooth 5.0, BLE, NFC, USB
  • Ingress Protection Rating: IP54
  • Drop Specification: 1.5 m / 5 ft
  • Dimensions: 6.5 x 3.8 x 10.7 in
  • Weight: Variant dependent (examples: 1.69 lb, 2.5 lb)
  • Compliance: TAA / FIPS available on select variants

Main Features

  • RFID: Yes

  • Rugged: Industrial

  • IP Rating: IP54

  • Range: Extended Range

  • Connectivity: Cordless

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanner Range Extended Range
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Keyboard/Keypad
Number of Keys 47
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Software
Operating System Android
Physical Characteristics
Form Factor Gun
Height 6.5"
Width 3.8"
Weight (Approximate) 1.69 lb
Warranty
Limited Warranty 12 Month
Documents
ico-plus ico-minus
Product document mc3390xr.pdf MC339U-GE4EG4WR  (PDF)
