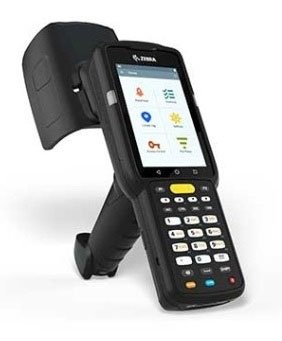

Zebra MC3390XR Mobile Computer RFID Reader UHF RFID, Linear Antenna, Extended Range 1D/2D Imager, 47-Key, Android 10 GMS, 7000mAh Battery
MC339U-GE4EG4FT
Select model
The Zebra MC3390xR UHF RFID Reader is a game-changer for efficient inventory management and order fulfillment. This lightweight and ergonomic device integrates a powerful Android platform, making it incredibly user-friendly. With an industry-leading RFID read range of over 60 ft., the MC3390xR streamlines operations and enhances accuracy in tracking and managing assets. Coupled with a robust 7000mAh battery and a rugged design, it is suited for semi-industrial environments, promising durability and sustained performance throughout shifts.
Key features:
- Long-Range Capability: Captures RFID tags from more than 60 ft away.
- Powerful Android Platform: Upgradeable to Android 14 for secure and efficient use.
- Durable Design: Withstands 5 ft. drops and features IP54 sealing against dust and liquids.
- Advanced Battery Management: 7000mAh battery with PowerPrecision+ for effortless management.
- Integrated Barcode Scanning: Supports both RFID and 1D/2D barcode scanning.
Specifications:
- Dimensions: 6.45 in. L x 3.78 in. W x 10.67 in. D
- Weight: 26.2 oz. (743 g) with SE4770; 27.1 oz. (769 g) with SE4850
- Display: 4-inch (800 x 480) color display, Corning Gorilla Glass
- CPU: Qualcomm Snapdragon™ M 660 octa-core 2.2 GHz
- Operating System: Android 11
- Memory: 4 GB RAM / 32 GB Flash
- Battery: 7000mAh rechargeable Li-Ion
- Drop Specifications: Multiple drops from 5 ft./1.5 m to concrete
- Sealing: IP54
- Wi-Fi Connectivity: IEEE 802.11 a/b/g/n/ac
- Bluetooth Version: Class 2, Bluetooth v5.0
Main Features
-
RFID: Yes
-
Rugged: Industrial
-
Range: Extended Range
-
Connection: USB
| Technical Information | |
|---|---|
| Minimum Frequency | 865 MHz |
| Maximum Frequency | 928 MHz |
| Frequency Band Type | UHF |
| Wireless LAN | Yes |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| Physical Characteristics | |
|---|---|
| Form Factor | Gun |
| Height | 6.5" |
| Width | 3.8" |
| Depth | 10.7" |
| Weight (Approximate) | 1.70 lb |
| Miscellaneous | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| TAA Compliant | Yes |
mc3390xr.pdf MC339U-GE4EG4FT
mc3390xr.pdf MOD-MC3390XR
