Zebra

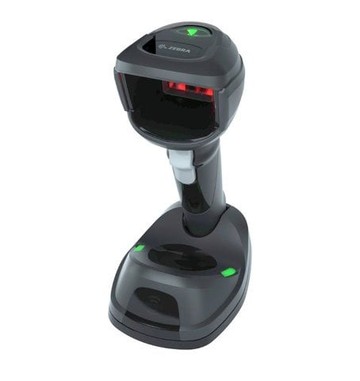

Zebra DS9908 RFID, Standard Range, White Illumination, Green LED, Black, Kit (USB)

SKU:

DS9908-SR4U210RAZU

General Purpose Scanners, Zebra DS9908, DS9908-SR Black RFID USB Kit, 902-928 MHZ: DS9908-SRR0004ZZUS Scanner, CBA-U21-S07ZBR Shielded USB Cable
Description
ico-plus ico-minus
The Zebra DS9908 Barcode Scanner revolutionizes the retail checkout experience with its hybrid design, allowing seamless transitions between handheld and hands-free scanning. Engineered for maximum efficiency, this powerful scanner utilizes advanced imaging technology to capture barcodes instantly, even those that are damaged or poorly printed. With rapid scanning speeds of up to 240 inches per second and an ergonomic structure that fits comfortably in any retail environment, the DS9908 boosts productivity while ensuring smooth transactions, ultimately enhancing customer satisfaction.

Key Features
  • Dual functionality: Switch dynamically between handheld and hands-free modes.
  • Industry-leading scanning technology: Rapidly capture 1D, 2D, and Digimarc® barcodes.
  • RFID model available: Integrates RFID capabilities for efficient inventory management.
  • Durable design: Survives spills, drops, and daily retail challenges.
  • Ergonomic handle: Comfortable and balanced for all-day use.


Specifications
  • Dimensions: 8.0 in. H x 3.7 in. W x 5.2 in. D
  • Weight: 11.6 oz.
  • Input Voltage: 4.5 to 5.5 VDC
  • Scan Speed: Up to 240 in./610 cm per second
  • Field of View: 48° H x 30.6° V
  • Operating Temperature: 32°F to 122°F
  • Environmental Sealing: IP52
  • Drop Rating: Withstands multiple drops from 5 ft. to concrete
  • Supported Interfaces: USB, RS232, Keyboard Wedge

Main Features

  • RFID: Yes

  • Case color: Black

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Han Xin
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B
  • MICR
  • US Currency
Digimarc: Digimarc barcodes

Light Source LED
Image Sensor Type Imager
Scan Pattern Area
Scanner Range Standard Range
Scanning Distance 24.70"
Features
  • Checkpoint EAS
  • Notification LED
Cable Type Included USB
Field of View (Horizontal) 48°
Field of View (Vertical) 31°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Image Formats
  • JPEG
  • TIFF
  • BMP
Maximum Ambient Light 107600 lux
Drop Specification DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast 16%
Maximum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Midnight Black
Durability
  • Scratch Resistant
  • Drop Resistant
  • Spill Resistant
  • Dust Resistant
Height 8"
Width 3.7"
Depth 5.2"
Weight (Approximate) 11.64 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Quick Service Restaurant (QSR)
  • Industrial
  • Convenience Store
Warranty
Limited Warranty 5 Year
Documents
ico-plus ico-minus
Product document ds9900.pdf DS9908-SR4U210RAZU Product document ds9900.pdf MOD-ZEBRA-DS9900-SERIES Product document ds9908-hd.pdf MOD-ZEBRA-DS9900-SERIES
